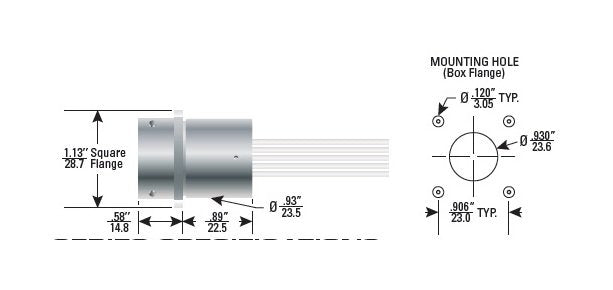

10 kVDC 7-Pin Front Box Flange Mount Receptacle Cable Assembly

Name: 10 kVDC 7-Pin Front Box Flange Mount Receptacle Cable Assembly
Brand: Teledyne Reynolds
SKU: HIG-d1d86b
Price: 129.99 USD
Availability: OutOfStock

SKU:HIG-d1d86b

Robust 10 kVDC 7-Pin Receptacle Cable Assembly with bayonet coupling, customizable length, and high-performance materials for reliable use in demanding applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 1407 Series 10 kVDC 7-Pin Front Box Flange Mount Receptacle Cable Assembly is a robust solution designed for high voltage applications, perfect for airborne Traveling Wave Tube (TWT) and TWT Amplifier (TWTA) use. With both shielded and non-shielded configurations, this connector features a bayonet coupling style, aluminum coupling nut with a nickel finish, and BeCu contacts with a gold finish. The cable assembly length is customizable in inches for precise fit. Engineered with Silicone insulator material, FEP wire insulation, and band braid termination, this assembly ensures reliable performance in harsh environments. Contact Teledyne Reynold's Engineering for custom design options.

Product Specifications

Contact Properties Contact Finish

Gold

Contact Properties Contact Material

BeCu

Coupling Nut Properties Coupling Nut Finish

Nickel

Coupling Nut Properties Coupling Nut Material

Aluminum

Specifications Altitude Rating

70,000 ft

Specifications Assembly

Receptacle Bag Assembly

Specifications Braid Termination

Band

Specifications Cable Assembly Length

All cable assembly cable lengths are to be specified in inches only. For example, to order part number 178-6027 with a cable length of 10 feet 8 inches the cable assembly part number would be specified as 178-6027-128N.

Specifications Coupling Style

Bayonet

Specifications Current Rating

6 A | 8 A

Specifications Insulator Material

Silicone

Specifications Manufacturing Notes

Contact Teledyne Reynold's Engineering to discuss custom designs. | Product numbers and specs subject to change without notice. | Products listed represent only a small selection of Teledyne Reynold's products please visit www.teledynereynolds.com for the most up to date product information.

Specifications Number Of Contacts

Specifications Operating Temperature

-55 to 105 ÂºC

Specifications Series

1407

Specifications Test Voltage At 70000 Ft

15 kVDC

Specifications Threaded Coupling Available

Specifications Voltage Rating

10 kVDC

Specifications Wire Insulation

FEP

10 kVDC 7-Pin Front Box Flange Mount Receptacle Cable Assembly
