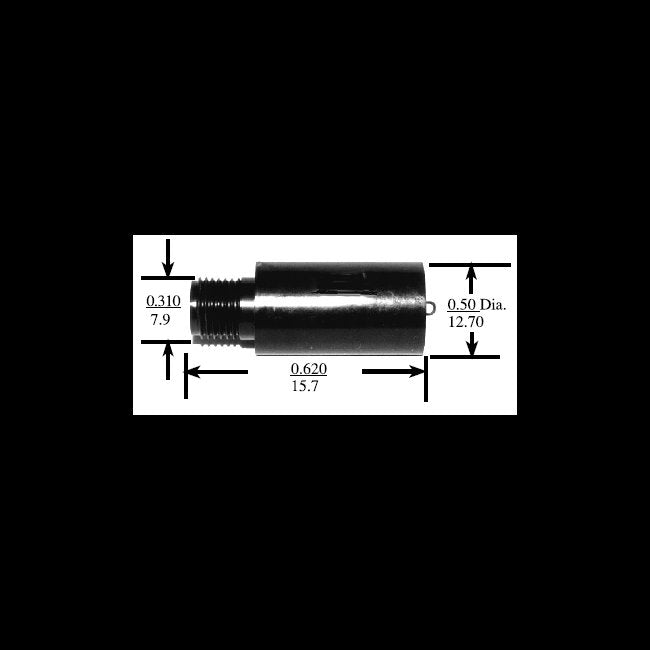

10 kVDC Receptacle Assembly - Series C 730
10 kVDC Receptacle Assembly - Series C 730
SKU:HIG-678d9f
High-voltage 10 kVDC Receptacle Assembly - C Series 730, designed for CRT displays, ECM equipment, and power supplies. RoHS compliant, threaded coupling style for secure connections.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
10 kVDC Receptacle Assembly - Series C 730
$49.99
Quantity: 1
Claim Your Seller Account
10 kVDC Receptacle Assembly - Series C 730
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 10 kVDC Receptacle Assembly in the C Series 730 is a reliable high-voltage solution suitable for a range of applications, including CRT displays, ECM equipment, power supplies, and Radar systems. Designed for seamless interconnection, this receptacle boasts a molded plug end on a customizable length of silicone cable, offering flexibility in deployment. With specifications like a current rating of 10 A, operating temperature range of -55 to 95 °C, and a test voltage of 15 kVDC, this receptacle ensures optimal performance in demanding environments. Compliant with RoHS standards, the receptacle features a threaded coupling style for secure connections and is sealed for added protection against environmental factors.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Receptacle Bag Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
All C 730 lead assembliesAll series 730 lead assembliesAll LGH 1/2I lead assemblies
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
Yes
Specifications Series
C 730
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC
Specifications Voltage Rating
10 kVDC
