10 kVDC Shielded & Non-Shielded Lead Assembly Plug Cable

10 kVDC Shielded & Non-Shielded Lead Assembly Plug Cable

HIG-47d336

High-quality 10 kVDC Shielded & Non-Shielded Lead Assembly Plug Cable for reliable high voltage applications.

$49.99
$49.99
Sale

Initiate Order

10 kVDC Shielded & Non-Shielded Lead Assembly Plug Cable

10 kVDC Shielded & Non-Shielded Lead Assembly Plug Cable

$49.99

Quantity: 1

Claim Your Seller Account

10 kVDC Shielded & Non-Shielded Lead Assembly Plug Cable

10 kVDC Shielded & Non-Shielded Lead Assembly Plug Cable

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

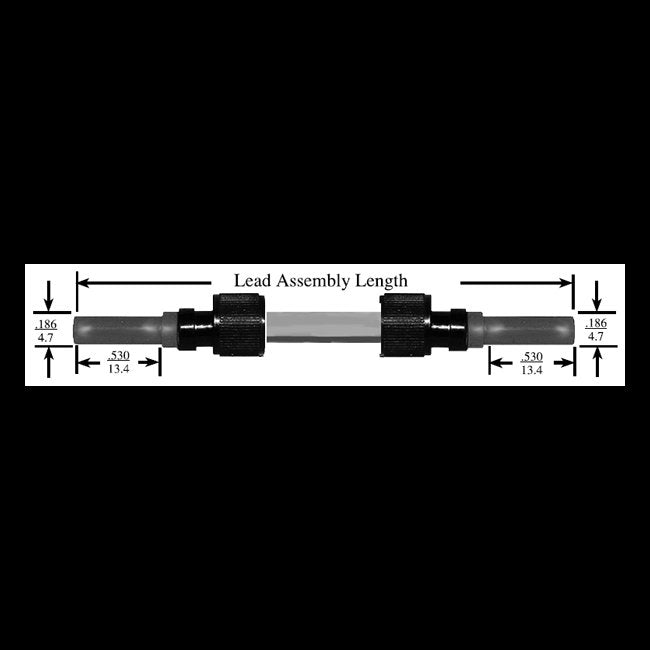

The 10 kVDC Shielded & Non-Shielded Lead Assembly Plug Cable is a high-quality solution designed for demanding high voltage applications. Featuring a double-ended plug cable assembly with positive stop (ferrule) for secure connections, this cable assembly is compatible with C Series LGH™ components and ensures reliable performance. With a voltage rating of 10 kVDC, a current rating of 10A, and operating temperature range of -55 to 95 °C, this cable assembly is constructed with high-grade materials like BeCu contacts with gold finish for superior conductivity and durability. It meets industry standards for insulation, coupling style, and more, making it ideal for various institutional and government procurement needs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Contact Properties Contact Finish
Gold
Contact Properties Contact Material
BeCu with CRES hood
Specifications Altitudereduced Pressure Rating
70,000 ft.
Specifications Assembly Type
Double-Ended Plug Cable Assembly
Specifications Coupling Style
Threaded
Specifications Current Rating
10 A
Specifications Export Classification
TBD
Specifications Insulator Material
Plastic
Specifications Mating Compatibility
All C 730 series receptaclesAll series 730 receptaclesAll LGH 1/2I series receptacles.
Specifications Operating Temperature
-55 to 95 ºC
Specifications Rohs Compliant
TBD
Specifications Sealed Receptacle
N/A
Specifications Series
C 730
Specifications Standardnon Standard
Standard Part
Specifications Test Voltage
15 kVDC
Specifications Voltage Rating
10 kVDC
Specifications Wire Insulation
White 0.160 Dia. silicone rubber, #AWG 16
