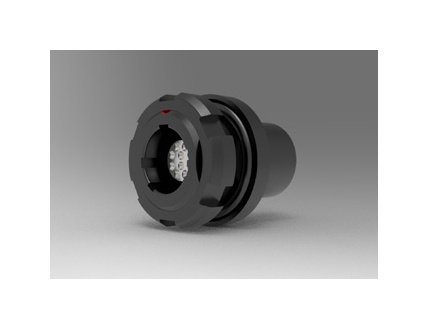

10-Point Rear Panel Mount Receptacle - Standard Ranger Series
10-Point Rear Panel Mount Receptacle - Standard Ranger Series
SKU:RAN-f2df38
Enhance connectivity with the 10-Point Rear Panel Mount Receptacle - Ideal for secure and efficient connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
10-Point Rear Panel Mount Receptacle - Standard Ranger Series
$29.99
Quantity: 1
Claim Your Seller Account
10-Point Rear Panel Mount Receptacle - Standard Ranger Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 10-Point Rear Panel Mount Receptacle from the Standard Ranger Series is crafted for optimal performance in various applications. With 10 contacts, PEEK insulator material, and a Cu-alloy with gold finish, it ensures secure connections. Operating within a wide temperature range and offering IP6K8/9K protection, this connector guarantees reliable functionality. Choose Ranger for superior quality and versatility across industries.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Dont Miss The New Connector From Amphenol Nexus Technologies Don
Amphenol NEXUS Technologies produces some of the best connectors today. Our Ranger connectors are designed for high-performance applications and will meet your industry's requirements.
Specifications Alternative Part
G80YAR-P10 CD0-000L
Specifications Cable Diameter
3 to 5.5 mm
Specifications Contact Diameter
0.5 mm
Specifications Contact Finish
Cu-Alloy with Gold Finish
Specifications Contact Type
Sockets
Specifications Current Rate
5 A
Specifications Degree Of Protection
Ingress Protection (IP6K8) | Ingress Protection (IP6K9K)
Specifications Insulator Material
Polyetheretherketone (PEEK)
Specifications Keying
Brown
Specifications Mating Cycles
5000
Specifications Number Of Contacts
10
Specifications Operating Temperature
-51 to 125 ºC
Specifications Shell Finish
Aluminum with Ruthenium Finish
Specifications Size
0
Specifications Termination Diameter
0.65 mm
Specifications Termination Type
Solder
Specifications Type Of Connector
Rear Panel Mount Receptacle
Specifications Voltage
200 V
Specifications Wire Cross Section
26 AWG
The Difference Between High Density And Standard Variations The
Both products have the same features, such as contact types, insulator material, keying, termination type, degree of protection, operating temperature, shell finish, and mating cycle. However, they have some differences that may affect the connectorâs performance. The differences between the two products:Voltage: Standard variations have voltages between 200V, 300V, 333V, and 450V, while High-Density only has voltage available in 250V.The number of contacts: Standard deviations have 3, 4, 5, 7, 8, 9, 10, 14, and 16 options, while High-Density only has 9, 12, 16, and 27.Data transmission: For Standard, USB 2.0 (480 Mbit/s) is available for NX-G80YAR-P04WFG0-000L and NX-A10YAR-P04XFG0-0000. You can also choose from USB 2.0 (480 Mbit/s) + Power, USB 3.2 Gen 1 x 1 (5 Gbit/s), HDMI 1.3 (8.13 Gbit/s), USB 2.0 (480 Mbit/s) + Power for High-Density. The rest is N/A.Contact diameter: Standard has a contact diameter of 0.5 mm, 0.7 mm, and 0.9 mm, while High-Density offers 3 x 0.3 mm, 6 x 0.7 mm, 10 x 0.3 mm. 2 x 0.7 mm, and 0.3 mm.Contact finish: Standard and High-Density are both Cu-alloy with gold finish.Current rate: High-Density offers a current rate of 1A and 5A for its products. On the other hand, Standard has 5A and 10A available. (to keep the same flow I would switch the order, standard first and HD second.)
Why Should You Opt For The New Ranger Connectors Why Should You
Our new and improved Ranger connectors are made with quality materials by our highly-skilled technicians. It features excellent electrical performance, a secure connection, and is easy to use. Even though we work primarily with the Military and Defense, Telecommunications, and Commercial Aviation sectors, Ranger is applicable for different applications in other industries. Versatility is the main benefit of Ranger connectors. So for more superior projects, it's the ideal option that you must consider. So if you're looking for a connector that can enhance your operation's efficiency, choose Ranger and find out what it offers.
