10 Series .156 Board Hole x #6 Nylon Self-Tapping Screw
10 Series .156 Board Hole x #6 Nylon Self-Tapping Screw
SKU:01C-c1e9c3
Effortless installation, minimal protrusion, Nylon 66 material, RoHS compliant, -40 to 185F temp range.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
10 Series .156 Board Hole x #6 Nylon Self-Tapping Screw
$29.99
Quantity: 1
Claim Your Seller Account
10 Series .156 Board Hole x #6 Nylon Self-Tapping Screw
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

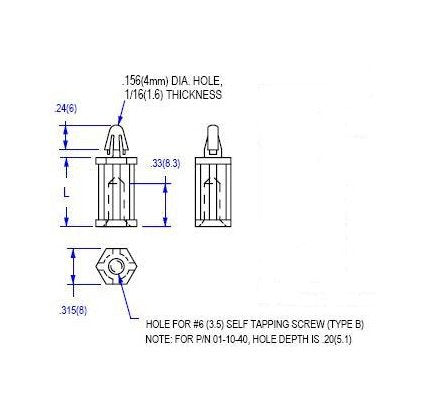

The 10 Series .156 Board Hole x #6 Nylon Self-Tapping Screw is designed to offer effortless installation by hand on chassis using self-tapping technology. With minimal protrusion, this screw is perfect for space-constrained applications. The PC board mount end is releasable, allowing for flexibility in assembly. Made of Nylon 66 UL94V-2 material (optional UL94V-0 available), this screw meets ASTM D 4066 and PA111 standards. RoHS compliant and capable of withstanding temperatures ranging from -40 to 185F (-40 to 85C), it ensures durability and safety in various environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Thickness
.063 (1.6) inches (mm)
Specifications Color
Natural
Specifications Dim L
1.13 (28.6) inches (mm)
Specifications Material Code
UL94V-2
