10 Series .156 Board Hole x #6 Self Tapping Screw - Circuit Board Supports

Name: 10 Series .156 Board Hole x #6 Self Tapping Screw - Circuit Board Supports
Brand: All Electronics Hardware
SKU: 01C-50af75
Price: 14.99 USD
Availability: OutOfStock

SKU:01C-50af75

Versatile self-tapping screw for circuit board supports with minimal protrusion and releasable mount end. RoHS compliant and suitable for limited space applications.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

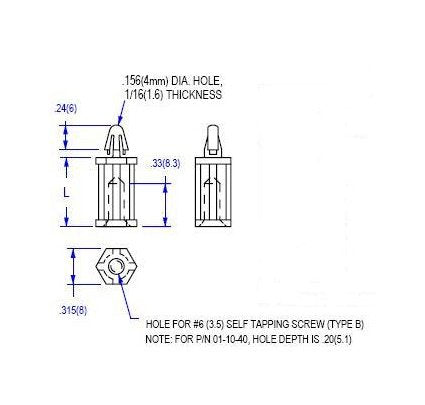

The 10 Series .156 Board Hole x #6 Self Tapping Screw is a versatile solution for circuit board supports. This self-tapping screw can be easily installed by hand, making it ideal for applications with limited space. With minimal protrusion and a releasable PC board mount end, this screw ensures secure attachment while facilitating maintenance. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it meets ASTM D 4066 and PA111 standards, ensuring durability and safety. RoHS compliant and offering a temperature range of -40 to 185F (-40 to 85C), this screw is a reliable choice for various electronic applications.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Thickness

.063 (1.6) inches (mm)

Specifications Color

White

Specifications Dim L

.750 (19.1) inches (mm)

Specifications Material Code

UL94V-0
