10 Series Circuit Board Supports Self-Tapping Screw

Name: 10 Series Circuit Board Supports Self-Tapping Screw
Brand: All Electronics Hardware
SKU: 01C-36544f
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-36544f

Easy-to-install self-tapping screw for circuit board supports, durable Nylon 66 material, UL94V-2 compliant, ideal for confined spaces.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

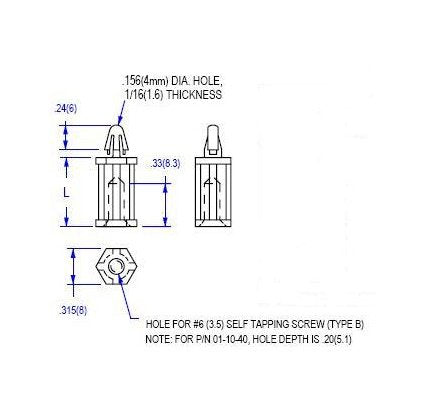

The 10 Series .156 Board Hole x #6 Self-Tapping Screw is designed for easy manual installation onto chassis, featuring minimal protrusion, making it perfect for confined spaces. The PC board mount end is releasable for convenient adjustments. This product is constructed with Nylon 66 UL94V-2 material, ensuring durability and safety. With compliance to UL File No. E53664, ASTM D 4066, PA111, and RoHS standards, it offers a temperature range of -40 to 185F (-40 to 85C), making it suitable for a wide range of applications in the circuit board supports category.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Thickness

.063 (1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L

.500 (12.7) inches (mm)

Specifications Material Code

UL94V-2
