10 Series Circuit Board Supports with .156 Board Hole Self-Tapping Screw #6

Name: 10 Series Circuit Board Supports with .156 Board Hole Self-Tapping Screw #6
Brand: All Electronics Hardware
SKU: 01C-3db038
Price: 19.99 USD
Availability: OutOfStock

SKU:01C-3db038

10 Series Circuit Board Supports for secure and flexible PC board installations in limited spaces, made of Nylon 66 UL94V-2 material.

$19.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

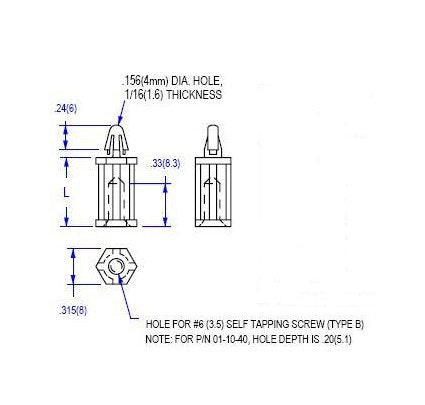

The 10 Series Circuit Board Supports with .156 Board Hole Self-Tapping Screw #6 are designed for easy manual installation on chassis using self-tapping screws. With minimal protrusion, these supports are perfect for applications with limited space. The PC board mount end is releasable, allowing for flexibility in setups. Made of Nylon 66 UL94V-2 material, these supports are also RoHS compliant and have a temperature range of -40 to 185F. Ideal for circuit board installations requiring secure and reliable support.

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Thickness

.063 (1.6) inches (mm)

Specifications Color

Natural

Specifications Dim L

.250 (6.4) inches (mm)

Specifications Material Code

UL94V-2

10 Series Circuit Board Supports with .156 Board Hole Self-Tapping Screw #6
