10 Series Nylon Circuit Board Support Screw

Name: 10 Series Nylon Circuit Board Support Screw
Brand: All Electronics Hardware
SKU: 01C-ba767c
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-ba767c

Versatile and reliable 10 Series Nylon Circuit Board Support Screw for secure and flexible PCB mounting.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 10 Series Nylon Circuit Board Support Screw is a versatile and reliable solution for secure PCB mounting. Designed for easy hand installation with a self-tapping feature, this screw offers minimal protrusion, making it perfect for space-constrained applications. Its releasable PC board mount end ensures flexibility during assembly. Constructed from Nylon 66 UL94V-0 material, this screw is UL recognized and RoHS compliant, providing durability and safety. With a temperature range of -40 to 185F (-40 to 85C), this screw is suitable for a wide range of environments. Ideal for circuit board supports, this screw meets stringent industry standards for quality and performance.

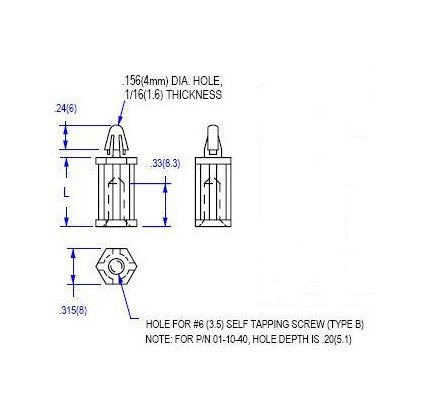

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Thickness

.063 (1.6) inches (mm)

Specifications Color

White

Specifications Dim L

.375 (9.5) inches (mm)

Specifications Material Code

UL94V-0

10 Series Nylon Circuit Board Support Screw
