10 Series Nylon Circuit Board Support Screw #6

Name: 10 Series Nylon Circuit Board Support Screw #6
Brand: All Electronics Hardware
SKU: 01C-e7650d
Price: 24.99 USD
Availability: OutOfStock

SKU:01C-e7650d

Premium Nylon Circuit Board Support Screw #6 - Easy to install, minimal protrusion, RoHS compliant.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 10 Series Nylon Circuit Board Support Screw #6 is designed for easy installation with a self-tapping feature, perfect for chassis applications with minimal protrusion. Its releasable PC board mount end ensures flexibility. This screw is fabricated from Nylon 66 UL94V-2 material, meeting ASTM D 4066, PA111 standards. RoHS compliant and offering a temperature range of -40 to 185F (-40 to 85C), this screw is ideal for various industrial applications.

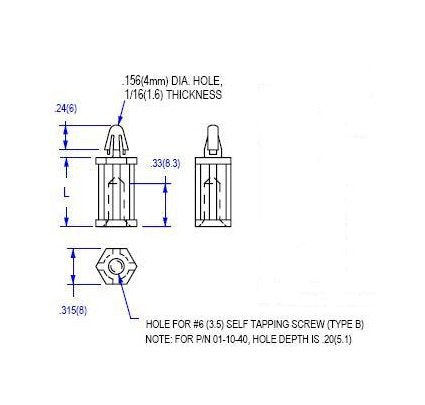

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Thickness

.063 (1.6) inches (mm)

Specifications Color

White

Specifications Dim L

.625 (15.9) inches (mm)

Specifications Material Code

UL94V-0

10 Series Nylon Circuit Board Support Screw #6
