10 Series Nylon Circuit Board Supports Self-Tapping Screw
10 Series Nylon Circuit Board Supports Self-Tapping Screw
SKU:01C-0a5977
Effortlessly install the 10 Series Nylon Circuit Board Support with Self-Tapping Screw for secure mounting in tight spaces. Compliant with UL94V-2 and RoHS standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
10 Series Nylon Circuit Board Supports Self-Tapping Screw
$29.99
Quantity: 1
Claim Your Seller Account
10 Series Nylon Circuit Board Supports Self-Tapping Screw
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

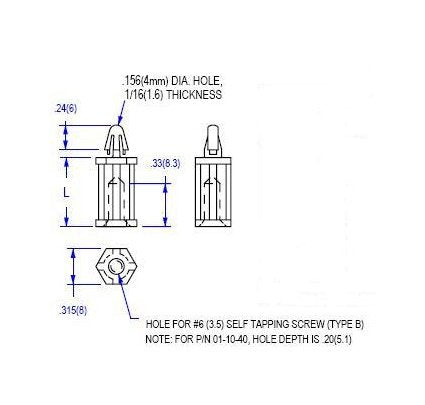

The 10 Series Nylon Circuit Board Support with Self-Tapping Screw is designed for easy manual installation onto chassis, making it perfect for applications with limited space. Featuring minimal protrusion and a releasable PC board mount end, this product offers convenience and functionality. Constructed from UL94V-2 Nylon material, this screw complies with ASTM and RoHS standards, ensuring quality and safety. With a temperature range of -40 to 185F (-40 to 85C), it is suitable for diverse environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Board Hole Diameter
.156 (4.0) inches (mm)
Specifications Chassis Thickness
.063 (1.6) inches (mm)
Specifications Color
Natural
Specifications Dim L
.625 (15.9) inches (mm)
Specifications Material Code
UL94V-2
