10 Series Self-Tapping Screw for Circuit Board Supports

Name: 10 Series Self-Tapping Screw for Circuit Board Supports
Brand: All Electronics Hardware
SKU: 01C-e4a32d
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-e4a32d

Securely attach circuit boards with the 10 Series Self-Tapping Screw. Easy installation, minimal protrusion, and versatile material for durability.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 10 Series Self-Tapping Screw is a top choice for circuit board support applications, offering easy manual installation with a minimal protrusion ideal for limited spaces. Made from Nylon 66 UL94V-2 material, this self-tapping screw ensures secure chassis attachment with a releasable PC board mount end. With ASTM D 4066 and RoHS compliance, this screw is suitable for a wide temperature range of -40 to 185F (-40 to 85C), providing durability and reliability for your projects.

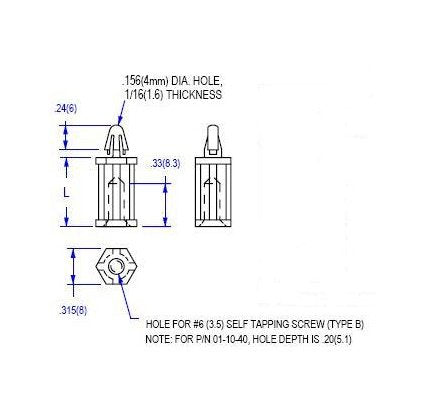

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Thickness

.063 (1.6) inches (mm)

Specifications Color

White

Specifications Dim L

1.13 (28.6) inches (mm)

Specifications Material Code

UL94V-0
