10 Series Self Tapping Screw for Circuit Board Supports

Name: 10 Series Self Tapping Screw for Circuit Board Supports
Brand: All Electronics Hardware
SKU: 01C-2ac5d1
Price: 9.99 USD
Availability: OutOfStock

SKU:01C-2ac5d1

Secure and durable self-tapping screw for circuit board supports, with easy manual installation and minimal protrusion. RoHS compliant and versatile temperature range.

$9.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 10 Series Self Tapping Screw is expertly designed for easy installation by hand, making it perfect for chassis applications. With minimal protrusion, it is ideal for limited spaces. This screw features a releasable PC board mount end, ensuring flexibility and convenience. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this screw meets ASTM D 4066 and PA111 standards, guaranteeing durability and reliability. RoHS compliant and featuring an impressive temperature range of -40 to 185F (-40 to 85C), this screw is the optimal choice for secure circuit board supports.

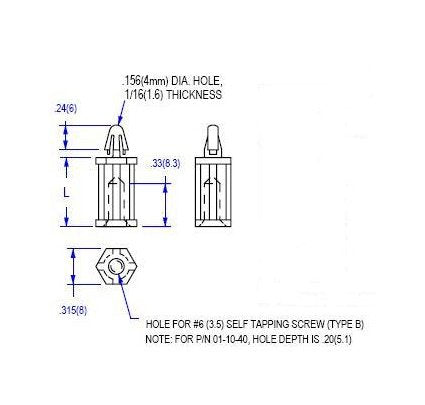

Product Specifications

Specifications Board Hole Diameter

.156 (4.0) inches (mm)

Specifications Chassis Thickness

.063 (1.6) inches (mm)

Specifications Color

White

Specifications Dim L

.500 (12.7) inches (mm)

Specifications Material Code

UL94V-0
