10" Silicon Carbide Abrasive Nylon Wheel Brush - 80 Grit
10" Silicon Carbide Abrasive Nylon Wheel Brush - 80 Grit
SKU:ABR-62081c
Premium 10" Silicon Carbide Nylon Wheel Brush - Ideal for precise metal finishing
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
10" Silicon Carbide Abrasive Nylon Wheel Brush - 80 Grit
$59.99
Quantity: 1
Claim Your Seller Account
10" Silicon Carbide Abrasive Nylon Wheel Brush - 80 Grit
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

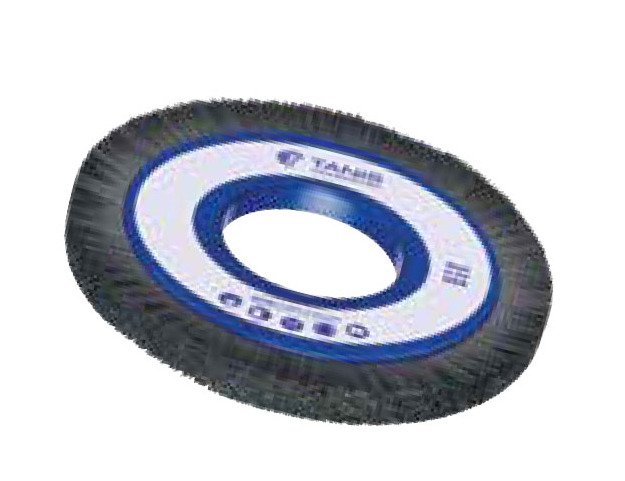

The Tanis® 10-inch Silicon Carbide Abrasive Nylon Wheel Brush offers exceptional durability and precise finishing for ferrous metals. With 80 grit size and 1-1/2" trim length, this brush ensures consistent and controlled surface abrading action, minimizing filament breakage. Ideal for machine part deburring, turbine blade finishing, and light cleaning tasks.
Product Specifications
Accessories

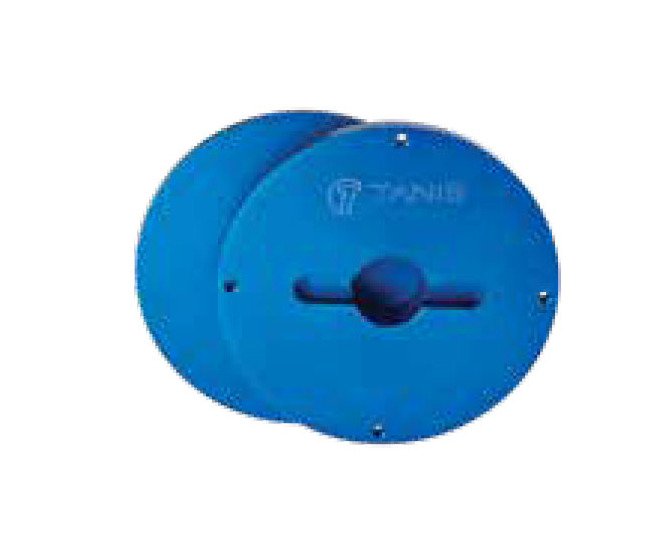

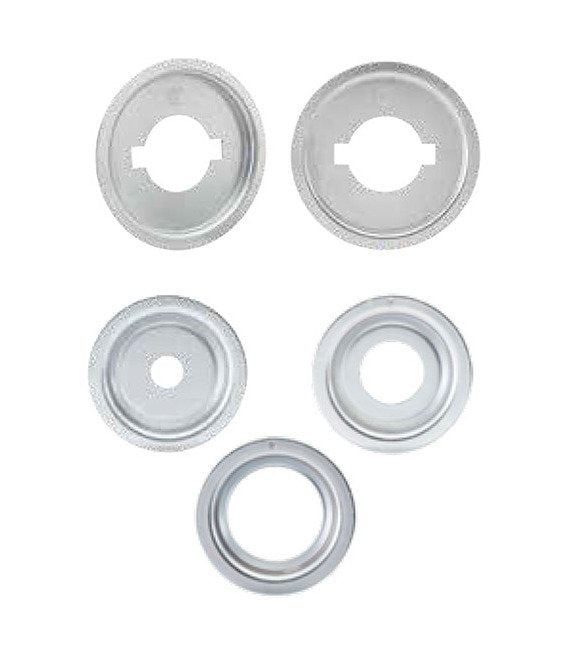

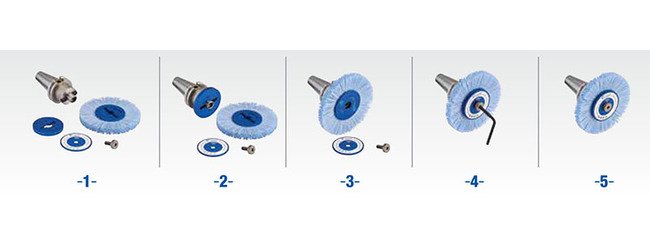

Wheel Brush Adapter PlatesDescription - These slip-fit metal adapters are used for mounting nylon abrasive wheel brushes onto smaller shafts. Sold in pairs. Available for 4-1/4" and 5-1/4" brush ID wheels and 2" brush ID wheels.Part Number - 35005Adapter Fits Arbor Hole - 2 in.Adapter Inside Diameter (ID) - 1/2 in.Wheel Brush Adapter PlatesDescription - These slip-fit metal adapters are used for mounting nylon abrasive wheel brushes onto smaller shafts. Sold in pairs. Available for 4-1/4" and 5-1/4" brush ID wheels and 2" brush ID wheels.Part Number - 35010Adapter Fits Arbor Hole - 2 in.Adapter Inside Diameter (ID) - 5/8 in.Wheel Brush Adapter PlatesDescription - These slip-fit metal adapters are used for mounting nylon abrasive wheel brushes onto smaller shafts. Sold in pairs. Available for 4-1/4" and 5-1/4" brush ID wheels and 2" brush ID wheels.Part Number - 35015Adapter Fits Arbor Hole - 2 in.Adapter Inside Diameter (ID) - 3/4 in.Wheel Brush Adapter PlatesDescription - These slip-fit metal adapters are used for mounting nylon abrasive wheel brushes onto smaller shafts. Sold in pairs. Available for 4-1/4" and 5-1/4" brush ID wheels and 2" brush ID wheels.Part Number - 35020Adapter Fits Arbor Hole - 2 in.Adapter Inside Diameter (ID) - 7/8 in.Wheel Brush Adapter PlatesDescription - These slip-fit metal adapters are used for mounting nylon abrasive wheel brushes onto smaller shafts. Sold in pairs. Available for 4-1/4" and 5-1/4" brush ID wheels and 2" brush ID wheels.Part Number - 35025Adapter Fits Arbor Hole - 2 in.Adapter Inside Diameter (ID) - 1 in.Wheel Brush Adapter PlatesDescription - These slip-fit metal adapters are used for mounting nylon abrasive wheel brushes onto smaller shafts. Sold in pairs. Available for 4-1/4" and 5-1/4" brush ID wheels and 2" brush ID wheels.Part Number - 35030Adapter Fits Arbor Hole - 2 in.Adapter Inside Diameter (ID) - 1-1/4 in.Wheel Brush Adapter PlatesDescription - These slip-fit metal adapters are used for mounting nylon abrasive wheel brushes onto smaller shafts. Sold in pairs. Available for 4-1/4" and 5-1/4" brush ID wheels and 2" brush ID wheels.Part Number - 35035Adapter Fits Arbor Hole - 2 in.Adapter Inside Diameter (ID) - 1-1/2 in.Wheel Brush Adapter Plates for CNC Machine Shell Mill HoldersTanis®’ Wheel Brush Adapter, designed by our engineering team to support automated deburring, allows simple attachment of wheel brushes to CNC machines. No hassle coupling is accomplished by placing the adapter plates on both sides of the wheel brush and securing the device with a bolt to the shell mill holder. Set screws prevent the brush from rotating.Part Number - 35900Face Width - StandardBrush Inside Diameter (ID) - 3/4 in.Pilot - 3/4 in.Wheel Brush Adapter Plates for CNC Machine Shell Mill HoldersTanis®’ Wheel Brush Adapter, designed by our engineering team to support automated deburring, allows simple attachment of wheel brushes to CNC machines. No hassle coupling is accomplished by placing the adapter plates on both sides of the wheel brush and securing the device with a bolt to the shell mill holder. Set screws prevent the brush from rotating.Part Number - 35902Face Width - ThinBrush Inside Diameter (ID) - 2 in.Pilot - 3/4 in.Wheel Brush Adapter Plates for CNC Machine Shell Mill HoldersTanis®’ Wheel Brush Adapter, designed by our engineering team to support automated deburring, allows simple attachment of wheel brushes to CNC machines. No hassle coupling is accomplished by placing the adapter plates on both sides of the wheel brush and securing the device with a bolt to the shell mill holder. Set screws prevent the brush from rotating.Part Number - 35905Face Width - StandardBrush Inside Diameter (ID) - 2 in.Pilot - 3/4 in.Wheel Brush Adapter Plates for CNC Machine Shell Mill HoldersTanis®’ Wheel Brush Adapter, designed by our engineering team to support automated deburring, allows simple attachment of wheel brushes to CNC machines. No hassle coupling is accomplished by placing the adapter plates on both sides of the wheel brush and securing the device with a bolt to the shell mill holder. Set screws prevent the brush from rotating.Part Number - 35907Face Width - StandardBrush Inside Diameter (ID) - 2 in.Pilot - 1-1/4 in.Wheel Brush Adapter Plates for CNC Machine Shell Mill HoldersTanis®’ Wheel Brush Adapter, designed by our engineering team to support automated deburring, allows simple attachment of wheel brushes to CNC machines. No hassle coupling is accomplished by placing the adapter plates on both sides of the wheel brush and securing the device with a bolt to the shell mill holder. Set screws prevent the brush from rotating.Part Number - 35920Face Width - DoubleBrush Inside Diameter (ID) - 2 in.Pilot - 1-1/4 in.
Additional Information
Abrasive nylon wheel brushes work best at speeds allowing fairly deep penetration of the work piece into the brush filaments. Faster speeds do not typically work as well as slower speeds, since the maximum RPM listed on the brush is not the optimum working speed. A good rule of thumb is to stay below 2,500 SFPM in dry applications and 3,500 SFPM with coolant. When operating multiple wheel brushes on a common shaft, multiply the HP requirements listed above times the number of brushes in use.Penetration (Point of Contact)The abrasive action occurs when the sides of the brush filament slides across the part surface or edge of the part. When the correct balance between speed (RPM), penetration, dwell time and abrasive grit size are achieved, then optimum life and cut can be obtained.Recommended penetration rates for abrasive nylon wheel brushes are maximized up to 10% of trim length. This will allow long brush life with aggressive abrasive action.Considerations when Selecting Filament for a Tanis® Abrasive Nylon BrushGrit Size120 grit is our recommended starting point for most applications. From there you can move either down or up in grit size, for a more aggressive cutting action or more of a polishing action. The chart on page 73 shows our abrasive nylon filament/grit size options.Trim Length and Brush DensityA brush with a short trim length is rigid and used for high speed cutting. Longer trim lengths are more flexible and used for conforming to irregular surfaces. Likewise, a brush with a lower fill density has greater flexibility and ability to conform, as well as increased resiliency. High fill density brushes are used for deburring and when high speed cutting is required.
Applications
Machine Part DeburringTurbine Blade Surface FinishingLight Duty Cleaning/FinishingEdge RadiusingImproving Surface FinishPost Coat Polish of Flutes on Carbide DrillsHone Drill Point Lip Edge on Carbide Drills
Note
Additional diameters and grits available upon request.
Specifications Arbor Hole Size
2 in
Specifications Brush Diameter
10 in
Specifications Dry Application Starting Speed
1000 to 1200 rpm
Specifications Face Width
1 in
Specifications Filament
Silicon Carbide
Specifications Filament Diameter
0.040 in
Specifications Material
Nylon
Specifications Maximum Speed
3600 rpm
Specifications Recommended Motor Size Based On A 1 Inch In Brush
1 hp
Specifications Size
80 grit
Specifications Trim Length
1-1/2 in
Surface Speed Surface Speed Peripheral Speed In Feet Per Minute
900 rpm | 1150 rpm | 1200 rpm | 1500 rpm | 1750 rpm | 2000 rpm | 2400 rpm | 2800 rpm | 3000 rpm | 3200 rpm | 3450 rpm | 3750 rpm | 4000 rpm | 4500 rpm | 5000 rpm | 5400 rpm | 6000 rpm
Troubleshooting Abrasive Nylon Brushes
Brush too aggressiveReduce filament diameter and/or grit sizeReduce surface speed by reducing RPMIncrease trim length and decrease fill densityIncrease feed rateUse a smaller diameter brushBrush not aggressive enoughIncrease filament density and/or grit sizeIncrease surface speed by increasing RPMDecrease trim lengthReduce feed rateUse a larger diameter brushBrush not conforming enough to partIncrease trim lengthReduce filament densityUse a smaller diameter brushReduce surface speed by reducing RPMReduce feed rateFinal finish too roughIncrease surface speed by increasing RPMUse a larger diameter brushUse a finer abrasive filamentUse a coolant or cutting oilUse a buffing compoundFinal finish too smoothReduce surface speed by reducing RPMUse a smaller diameter brushIncrease filament density and/or grit sizeFilament smearing/meltingReduce surface speed by reducing RPMDecrease brush diameterUse a coolant or lubricantMore action needed on edges parallel to brush axisReduce surface speed by reducing RPMReduce feed rateKeep longer brush contact on problem areaMore action needed on edges perpendicular to brush axisReduce surface speed by reducing RPMIncrease feed rateOscillate brush on problem areaBrush action not uniform enoughIncrease trim lengthReduce filament densityUse automated equipment for brush motionShort brush lifeIncrease filament densityReduce pressure/depth of interference
