-10 to 55°C Environment Ambient Temperature Timer
-10 to 55°C Environment Ambient Temperature Timer
SKU:PRO-996708
High-performance -10 to 55°C Environment Ambient Temperature Timer with 8-digit LCD display and wide setting range for precise timing applications.
Regular price
$69.95
Regular price
Sale price
$69.95
Unit price
per
Initiate Order
-10 to 55°C Environment Ambient Temperature Timer
$69.95
Quantity: 1
Claim Your Seller Account
-10 to 55°C Environment Ambient Temperature Timer
$69.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

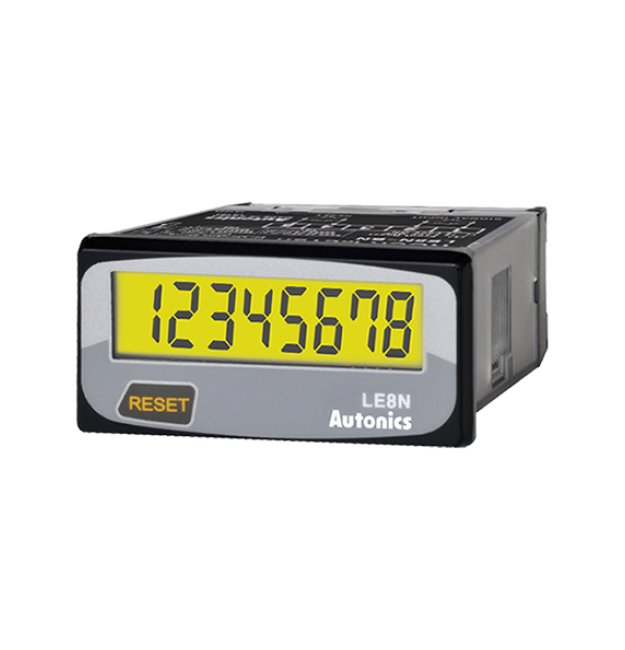

The -10 to 55°C Environment Ambient Temperature Timer from Autonics USA is a high-performance 8-digit LCD timer designed for precision time tracking in industrial settings. This timer boasts a sturdy 1/32 DIN construction and comes with a built-in battery that ensures uninterrupted operation for over 10 years. With a wide setting range from 0.01 second to 99999999 seconds, this timer offers versatile functionality suitable for various timing applications. Its robust design features IP66 protection against environmental elements, CE and cRUus certifications, and compliance with European Conformity and Underwriters Laboratory standards.
Product Specifications
Accessories Accessories
Mounting Bracket | Rubber Waterproof Ring
Note Note
SW1 is the front panel RESET key enable/disable set switch.SW2 is the time range set switch.SW3 is available to select time specification TS1, TS2, or TS3.No-voltage input, voltage input: between terminals and the case,Free voltage input: between the free voltage input terminal and the RESET input terminal, between terminals and the caseThe weight includes packaging. The weight in parenthesis is for unit only.The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
Specifications Approval
European Conformity (CE) | Underwriters Laboratory Recognized Component (cRUus)
Specifications Approximate Minimum Signal Width For Inhibit
20 ms
Specifications Approximate Minimum Signal Width For Reset
20 ms
Specifications Approximate Minimum Signal Width For Start
20 ms
Specifications Approximate Net Weight
50 g
Specifications Approximate Weight
96 g
Specifications Backlight
Backlight Function
Specifications Control Output
Indicator
Specifications Display Method
8-Digit 7-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications External Set Switch
SW1 | SW2 | SW3
Specifications Input Method Reset
Voltage Input (Positive Negative Positive (PNP))
Specifications Input Method Signal
Voltage Input (Positive Negative Positive (PNP))
Specifications List Price
69.95 USD
Specifications Operation Method
Count Up
Specifications Power Supply
Built-in battery (over 10 years)
Specifications Protection Structure
Ingress Protection (IP) 66 (Front Panel)
Specifications Setting Range
0.01 Second to 9999 Hour 59 Minute 59 Second | 0.1 Hour | 0.1 Hour to 9999 day 23.9 Hour | 0.1 Minute to 9999 Hour 59.9 Minute | 0.1 Minute to 99999 Hour 59.9 Minute | 1 Minute to 9999 day 23 Hour 59 Minute | 1 Minute to 99999 Hour 59 Minute | 1 Minute to 999999 Hour 59 Minute | 1 Second to 99999999 Second
Specifications Terminal
Terminal Block
Specifications Time Operation
Power On Start
Specifications Type
Hour Meter | Liquid Crystal Display (LCD)
Specifications Weight
0.2 lb
