-10 to 55°C Environment Ambient Temperature Timer LCD - Autonics USA
-10 to 55°C Environment Ambient Temperature Timer LCD - Autonics USA
SKU:PRO-46035e
Autonics USA -10 to 55°C Timer LCD w/ IP66 Protection, CE/cRUus Approval - Reliable & Precise
Regular price
$63.95
Regular price
Sale price
$63.95
Unit price
per
Initiate Order
-10 to 55°C Environment Ambient Temperature Timer LCD - Autonics USA
$63.95
Quantity: 1
Claim Your Seller Account
-10 to 55°C Environment Ambient Temperature Timer LCD - Autonics USA
$63.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

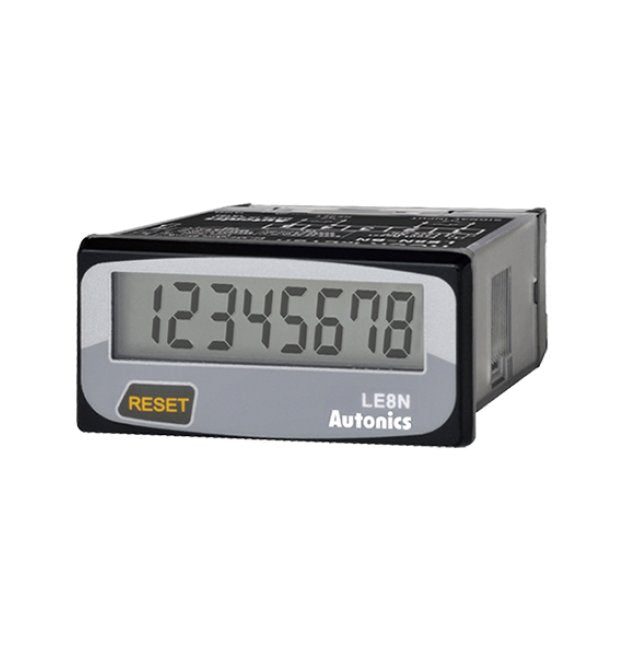

The -10 to 55°C Environment Ambient Temperature Timer by Autonics USA is a cutting-edge 8-digit LCD display with a power-on start operation method, built-in battery, and a wide setting range from seconds to hours. With IP66 protection, CE and cRUus approval, and voltage input control, it meets rigorous industry standards for reliability and performance. Suitable for both consumer and institutional buyers, this timer ensures precision and durability in various environments.
Product Specifications
Accessories Accessories
Mounting Bracket | Rubber Waterproof Ring
Note Note
SW1 is the front panel RESET key enable/disable set switch.SW2 is the time range set switch.SW3 is available to select time specification TS1, TS2, or TS3.No-voltage input, voltage input: between terminals and the case,Free voltage input: between the free voltage input terminal and the RESET input terminal, between terminals and the caseThe weight includes packaging. The weight in parenthesis is for unit only.The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
Specifications Approval
European Conformity (CE) | Underwriters Laboratory Recognized Component (cRUus)
Specifications Approximate Minimum Signal Width For Inhibit
20 ms
Specifications Approximate Minimum Signal Width For Reset
20 ms
Specifications Approximate Minimum Signal Width For Start
20 ms
Specifications Approximate Net Weight
50 g
Specifications Approximate Weight
96 g
Specifications Control Output
Indicator
Specifications Display Method
8-Digit 7-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications External Set Switch
SW1 | SW2 | SW3
Specifications Input Method Reset
Voltage Input (Positive Negative Positive (PNP))
Specifications Input Method Signal
Voltage Input (Positive Negative Positive (PNP))
Specifications List Price
63.95 USD
Specifications Operation Method
Count Up
Specifications Power Supply
Built-in battery (over 10 years)
Specifications Protection Structure
Ingress Protection (IP) 66 (Front Panel)
Specifications Setting Range
0.01 Second to 9999 Hour 59 Minute 59 Second | 0.1 Hour | 0.1 Hour to 9999 day 23.9 Hour | 0.1 Minute to 9999 Hour 59.9 Minute | 0.1 Minute to 99999 Hour 59.9 Minute | 1 Minute to 9999 day 23 Hour 59 Minute | 1 Minute to 99999 Hour 59 Minute | 1 Minute to 999999 Hour 59 Minute | 1 Second to 99999999 Second
Specifications Terminal
Terminal Block
Specifications Time Operation
Power On Start
Specifications Type
Hour Meter | Liquid Crystal Display (LCD)
Specifications Weight
0.2 lb
