-10 to 55°C Environment I/O Terminal Block
-10 to 55°C Environment I/O Terminal Block
SKU:PRO-a5fde4

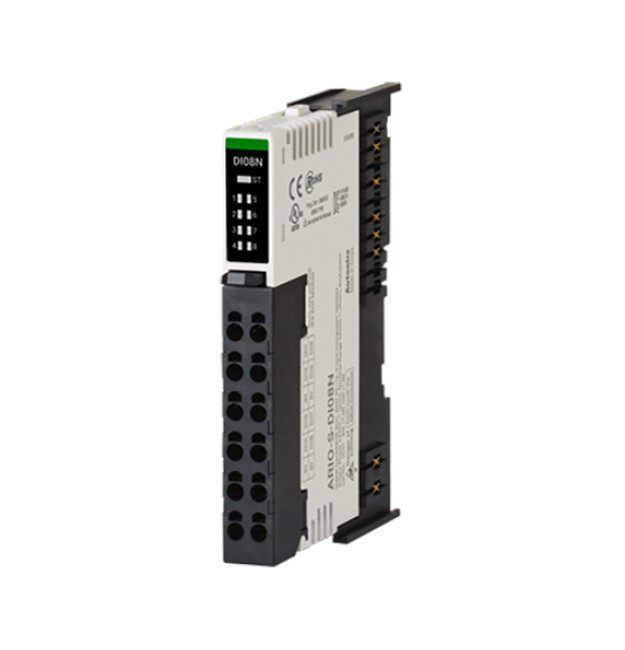

Reliable slim remote I/O module with 8 NPN digital input channels, -10 to 55°C operating temperature range, and IP 20 protection.
Regular price
$101.95
Regular price
Sale price
$101.95
Unit price
per
Initiate Order
-10 to 55°C Environment I/O Terminal Block
$101.95
Quantity: 1
Claim Your Seller Account
-10 to 55°C Environment I/O Terminal Block
$101.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The -10 to 55°C Environment I/O Terminal Block is a slim remote I/O module designed for reliable digital input operations. With 8 channels of NPN digital inputs, this terminal block offers a wide operating temperature range, from -10 to 55°C. It provides enhanced environmental protection with Ingress Protection (IP) 20, making it suitable for various industrial applications. Approved by European Conformity (CE), Korean Certification (KC), and cULus Listed, this terminal block ensures compliance with international standards.
Product Specifications
Specifications Approval
European Conformity (CE) | Korean Certification (KC) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
108 g
Specifications Approximate Weight
75 g
Specifications Base Material
Polyamide 6 | Polyoxymethylene
Specifications Body Material
Modified Polyphenylene Oxide
Specifications Direct Current Dc Inputoutput Io Signal Level
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 70 ºC
Specifications Inputoutput Io Common
Negative Positive Negative (NPN)
Specifications Insulation Resistance At 500 Volt V Direct Curren
100 MΩ
Specifications List Price
101.95 USD
Specifications Maximum Inputoutput Io Current Consumption Per Ch
6 mA
Specifications Maximum Input Direct Current Dc Voltage Turn Off
0.4 V
Specifications Maximum Off Delay Time
1.5 ms
Specifications Maximum On Delay Time
0.5 ms
Specifications Maximum Power Consumption Abus
0.9 W
Specifications Maximum Power Current Abus
180 mA
Specifications Minimum Input Direct Current Dc Voltage Turn On
7 V
Specifications Mounting Type
DIN Rail Mounting
Specifications Note For Insulation Resistance At 500 Volt V Dire
I/O to Inner Circuit: Photocoupler Insulated, Between Channels: Non-insulated
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Terminal Material
Polyamide 6
Specifications Tolerance For Direct Current Dc Inputoutput Io Si
±10 %
Specifications Weight
0.2 lb
