-10 to 55°C Environment I/O Terminal Block
-10 to 55°C Environment I/O Terminal Block
SKU:PRO-3e1fc4
Versatile -10 to 55°C I/O Terminal Block with 4 ch Digital Output NPN, CE/KC/cULus Certified
Regular price
$101.95
Regular price
Sale price
$101.95
Unit price
per
Initiate Order
-10 to 55°C Environment I/O Terminal Block
$101.95
Quantity: 1
Claim Your Seller Account
-10 to 55°C Environment I/O Terminal Block
$101.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

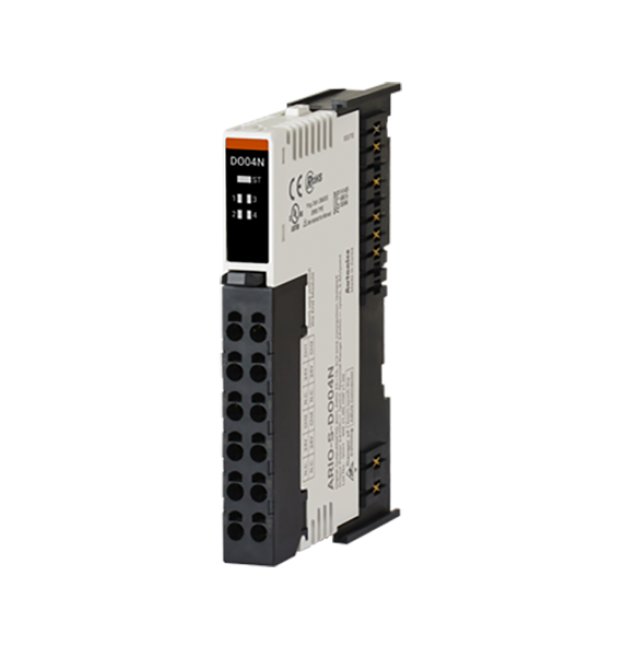

The -10 to 55°C Environment I/O Terminal Block is a versatile slim remote I/O module ideal for industrial applications. With 4 ch digital output NPN configuration, this terminal block ensures reliable performance in temperature ranges from -10 to 55°C. It features DIN rail mounting, NPN input/output common, and IP20 protection for durability. Certified by CE, KC, and cULus, it meets stringent quality standards. Designed with polyamide 6 and polyphenylene oxide materials, this terminal block offers excellent insulation resistance and a maximum rated output current per channel of 500 mA. Experience seamless connectivity and precise control with this advanced I/O terminal block.
Product Specifications
Specifications Approval
European Conformity (CE) | Korean Certification (KC) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
108 g
Specifications Approximate Weight
75 g
Specifications Base Material
Polyamide 6 | Polyoxymethylene
Specifications Body Material
Modified Polyphenylene Oxide
Specifications Direct Current Dc Inputoutput Io Signal Level
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 70 ºC
Specifications Inputoutput Io Common
Negative Positive Negative (NPN)
Specifications Insulation Resistance At 500 Volt V Direct Curren
100 MΩ
Specifications List Price
101.95 USD
Specifications Maximum Off Delay Time
1.5 ms
Specifications Maximum On Delay Time
0.5 ms
Specifications Maximum Output Leakage Direct Current Dc Voltage
1.2 V
Specifications Maximum Power Consumption Abus
0.9 W
Specifications Maximum Power Current Abus
180 mA
Specifications Maximum Rated Output Current Per Channel 4 Channe
500 mA
Specifications Maximum Rated Output Current Per Channel 8 Channe
500 mA
Specifications Mounting Type
DIN Rail Mounting
Specifications Note For Insulation Resistance At 500 Volt V Dire
I/O to Inner Circuit: Photocoupler Insulated, Between Channels: Non-insulated
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Terminal Material
Polyamide 6
Specifications Tolerance For Direct Current Dc Inputoutput Io Si
±10 %
Specifications Weight
0.2 lb
