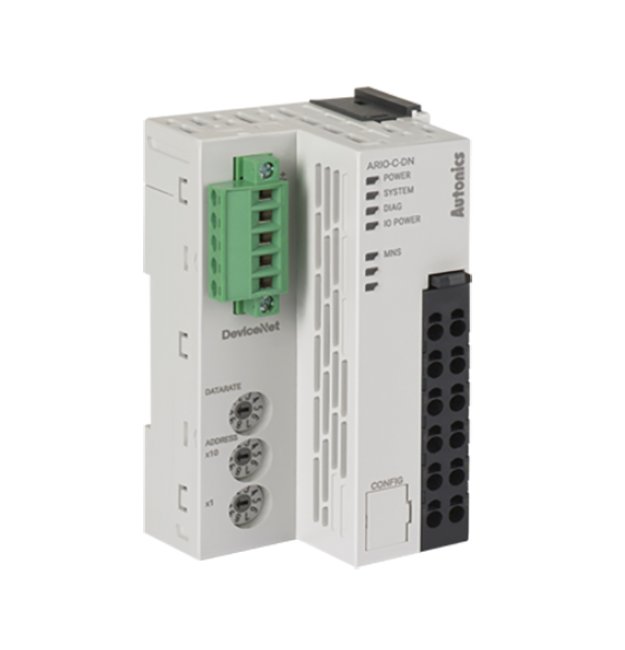

-10 to 55°C Environment I/O Terminal Block
-10 to 55°C Environment I/O Terminal Block
SKU:PRO-20f1ab
High-performance I/O Terminal Block for -10 to 55°C environments. DIN rail mounting, 500 kB/s communication speed, CE/KC/cULus approved.
Regular price
$372.95
Regular price
Sale price
$372.95
Unit price
per
Initiate Order
-10 to 55°C Environment I/O Terminal Block
$372.95
Quantity: 1
Claim Your Seller Account
-10 to 55°C Environment I/O Terminal Block
$372.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The -10 to 55°C Environment I/O Terminal Block is a robust and reliable connectivity solution suitable for a wide range of applications. Designed to operate in temperatures ranging from -10 to 55°C, with a storage temperature of -25 to 70°C, this terminal block offers unparalleled performance and durability. With a communication speed of 500 kB/s, DIN rail mounting, and approval from European Conformity (CE), Korean Certification (KC), and cULus Listed, it ensures seamless integration and compliance with international standards. The compact design, allowing for a maximum of 32 units, makes it ideal for institutional and government procurement needs.
Product Specifications
Specifications Approval
European Conformity (CE) | Korean Certification (KC) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
265 g
Specifications Approximate Weight
165 g
Specifications Base Material
Polyamide 6 | Polyoxymethylene
Specifications Body Material
Modified Polyphenylene Oxide
Specifications Communication Connector
5-Pin Printed Circuit Board (PCB) Connector
Specifications Communication Speed
500 kB/s
Specifications Coupler Type
DeviceNet
Specifications Direct Current Dc Power Consumption Voltage Coupl
24 V
Specifications Direct Current Dc Power Supply Current Bus Extern
400 mA
Specifications Direct Current Dc Power Supply Voltage Bus Extern
24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 70 ºC
Specifications Input Memory
255 B
Specifications Insulation Resistance At 500 Volt V Direct Curren
100 or more MΩ
Specifications List Price
372.95 USD
Specifications Maximum Connections For Modules
32 Units
Specifications Maximum Power Supply Bus External Consumption
9.6 W
Specifications Maximum Power Supply Bus Internal Supply
48 W
Specifications Mounting Type
DIN Rail Mounting
Specifications Output Memory
255 B
Specifications Power Consumption Current Coupler Standbyrun
200 mA
Specifications Power Consumption Current Maximum Load Coupler
400 mA
Specifications Power Supply Current Bus Internal Supply
960 mA
Specifications Power Supply Inputoutput Io
24 VDC, Maximum 4,000 mA (Maximum 96 W, Maximum 2,000 mA/CH, 2CH/COM)
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Setting And Monitoring
PC Connection with Universal Serial Bus (USB) 2.0 Micro Type Connector (Comprehensive Device Management Program, DAQMaster)
Specifications Terminal Material
Polyamide 6
Specifications Weight
0.2 lb
