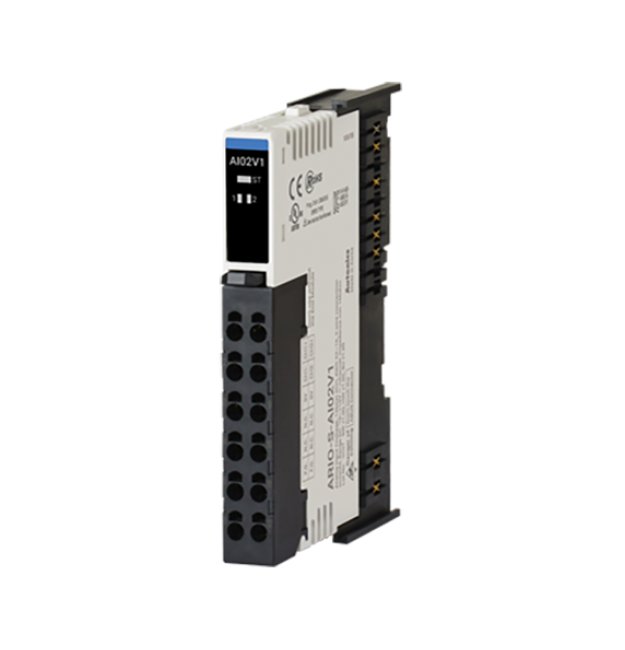

• -10 to 55°C I/O Terminal Block - Image 1
1 1
Advance Electrical & Automation →

-10 to 55°C I/O Terminal Block

-10 to 55°C I/O Terminal Block

PRO-c46ec9

Efficient -10 to 55°C I/O Terminal Block with 2 ch Analog Voltage Input, DIN Rail Mounting, and CE, KC, cULus Listing

$273.95
$273.95
Sale

Initiate Order

-10 to 55°C I/O Terminal Block

-10 to 55°C I/O Terminal Block

$273.95

Quantity: 1

Claim Your Seller Account

-10 to 55°C I/O Terminal Block

-10 to 55°C I/O Terminal Block

$273.95

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The -10 to 55°C I/O Terminal Block is a slim and efficient remote I/O module with 2 channels for analog voltage input, offering a range of -10 to 10VDC. Built to withstand diverse environmental conditions, it operates within temperatures ranging from -10 to 55°C and meets Ingress Protection (IP) 20 standards. With a compact design and DIN rail mounting capability, this terminal block ensures high precision with a 12-bit resolution and ±0.3% full-scale accuracy. It is CE, KC, and cULus listed, making it suitable for various institutional and government procurement applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Approval
European Conformity (CE) | Korean Certification (KC) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Packaged Weight
108 g
Specifications Approximate Weight
75 g
Specifications Base Material
Polyamide 6 | Polyoxymethylene
Specifications Body Material
Modified Polyphenylene Oxide
Specifications Direct Current Dc Inputoutput Io Voltage Range
-10 ~ 10 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 70 ºC
Specifications Full Scale Accuracy At Room Temperature
±0.3 %
Specifications Full Scale Accuracy Out Of Room Temperature
±0.6 %
Specifications Inputoutput Io Method
Voltage Input
Specifications Insulation Resistance At 500 Volt V Direct Curren
100 MΩ
Specifications List Price
273.95 USD
Specifications Maximum Power Consumption Inputoutput Io
0.5 W
Specifications Maximum Power Current Inputoutput Io
100 mA
Specifications Maximum Power Direct Current Dc Voltage Abus
5 V
Specifications Minimum Input Impedance
1 MΩ
Specifications Mounting Type
DIN Rail Mounting
Specifications Note For Insulation Resistance At 500 Volt V Dire
I/O to Inner Circuit: Photocoupler Insulated, Between Channels: Non-insulated
Specifications Protection Structure
Ingress Protection (IP) 20 (International Electrotechnical Commission (IEC) Standard)
Specifications Resolution
12 bits
Specifications Status Indicator On Conditions
Below -1 V or Over 1 V
Specifications Terminal Material
Polyamide 6
Specifications Weight
0.2 lb
