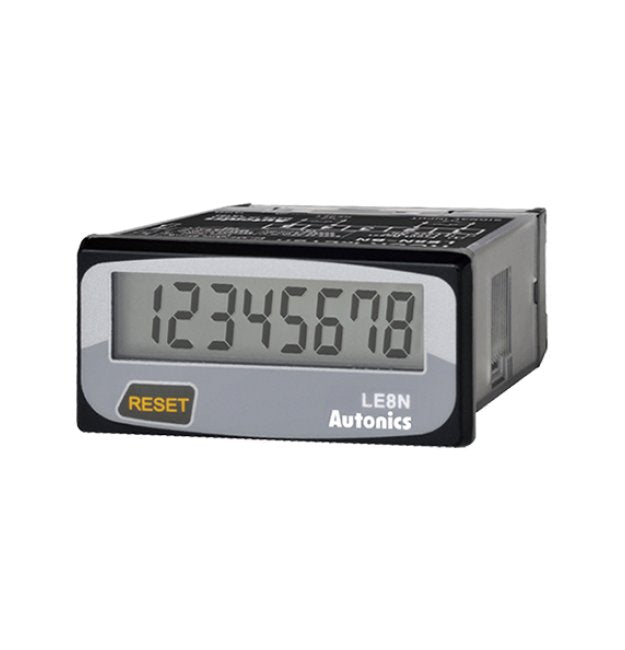

The -10 to 55°C Timer & Hour Meter with LCD Display from Autonics USA is a precision instrument designed for reliable time tracking in industrial and commercial settings. Featuring an 8-digit LCD with clear visibility, this unit operates on a built-in battery with a lifespan of over 10 years. With a setting range from 0.01 second to 99999999 seconds, multiple input methods, and a sturdy construction meeting IP66 standards, it ensures accurate timekeeping in ambient temperatures ranging from -10 to 55°C. Approved by CE and cULus for quality and safety, this timer offers versatile functionality with a compact design suitable for various applications.
Product Specifications
Accessories Accessories
Mounting Bracket | Rubber Waterproof Ring
Note Note
SW1 is the front panel RESET key enable/disable set switch.SW2 is the time range set switch.SW3 is available to select time specification TS1, TS2, or TS3.No-voltage input, voltage input: between terminals and the case,Free voltage input: between the free voltage input terminal and the RESET input terminal, between terminals and the caseThe weight includes packaging. The weight in parenthesis is for unit only.The temperature or humidity mentioned in Environment indicates a non freezing or condensation environment.
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Minimum Signal Width For Inhibit
20 ms
Specifications Approximate Minimum Signal Width For Reset
20 ms
Specifications Approximate Minimum Signal Width For Start
20 ms
Specifications Approximate Net Weight
50 g
Specifications Approximate Weight
96 g
Specifications Control Output
Indicator
Specifications Digit
8
Specifications Display Method
8-Digit 7-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications External Set Switch
SW1 | SW2 | SW3
Specifications Height
24 mm
Specifications Input Method Reset
No-Voltage Input (Negative Positive Negative (NPN))
Specifications Input Method Signal
Free Voltage Input
Specifications Input Type
Free Voltage Input
Specifications List Price
63.95 USD
Specifications Operation Method
Count Up
Specifications Power Supply
Built-in battery (over 10 years)
Specifications Protection Structure
Ingress Protection (IP) 66 (Front Panel)
Specifications Setting Range
0.01 Second to 9999 Hour 59 Minute 59 Second | 0.1 Hour | 0.1 Hour to 9999 day 23.9 Hour | 0.1 Minute to 9999 Hour 59.9 Minute | 0.1 Minute to 99999 Hour 59.9 Minute | 1 Minute to 9999 day 23 Hour 59 Minute | 1 Minute to 99999 Hour 59 Minute | 1 Minute to 999999 Hour 59 Minute | 1 Second to 99999999 Second
Specifications Terminal
Terminal Block
Specifications Time Operation
Power On Start
Specifications Type
Hour Meter | Liquid Crystal Display (LCD)
Specifications Weight
0.22 lb
Specifications Width
48 mm
