10 Ton Top Running Single Girder Motor Driven Crane
10 Ton Top Running Single Girder Motor Driven Crane
SKU:REL-ed1ad8
10 Ton Motor Driven Crane, Model TSS, top-running design, ideal for extreme conditions, 10-ton capacity.
Regular price
$12,499.99
Regular price
Sale price
$12,499.99
Unit price
per
Initiate Order
10 Ton Top Running Single Girder Motor Driven Crane
$12,499.99
Quantity: 1
Claim Your Seller Account
10 Ton Top Running Single Girder Motor Driven Crane
$12,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

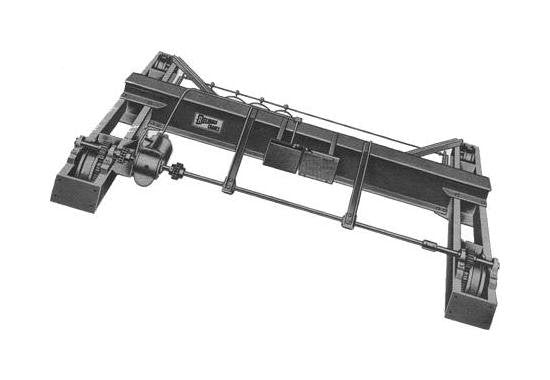

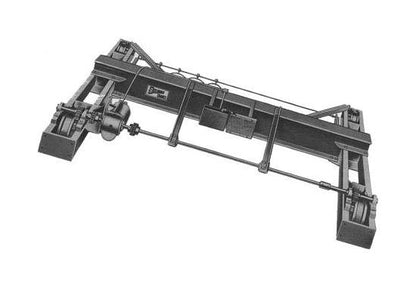

The 10 Ton Top Running Single Girder Motor Driven Crane, model TSS, is engineered for reliability and efficiency in extreme conditions. With a span of 17'-6" and a sturdy S20 x 65.4 girder size, this crane is suitable for indoor and outdoor use. Featuring top-running, single girder design, it offers a capacity of 10 tons, ensuring optimal performance with safety enclosed bridge conductors and bare copper wire for the runway collectors.
Product Specifications
Specifications 0
Runway Collectors
Specifications Bridge Conductors
Bare Copper Wire | Safety Enclosed
Specifications Capacity
10 Tons
Specifications Crane
Hand Geared | Motor Driven | Push Type
Specifications Crane Weight
3345 lbs.

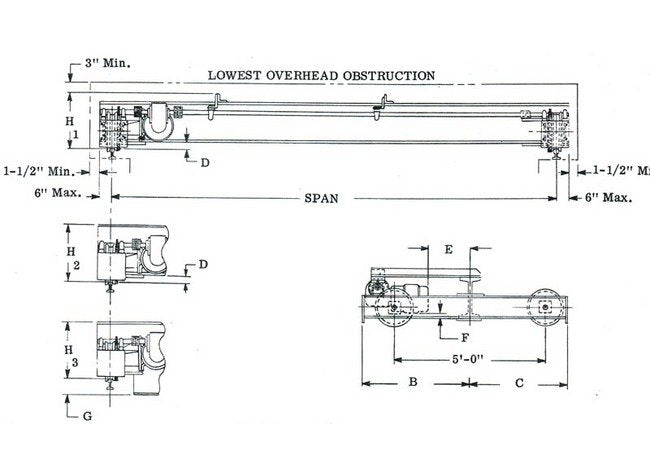

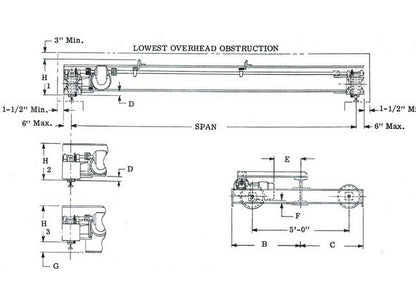

Specifications Dimension B
3'-6"
Specifications Dimension C
3'-2"
Specifications Dimension D
1 inches
Specifications Dimension E
1'-2"
Specifications Dimension F
6 inches
Specifications Dimension G
2 inches
Specifications Dimension H1
24 inches
Specifications Dimension H2
22 inches
Specifications Dimension H3
18 inches
Specifications Electric
&nbps;
Specifications Girder Size
S20 x 65.4
Specifications Hoist Headroom
Hand Chain | Low Headroom | Standard Headroom
Specifications Model
Model TSS Motorized Crane
Specifications Runway Rail
40# A.S.C.E.
Specifications Span
17'-6"
Specifications Trolley
Hand Geared | Motor Driven | Push Type
Specifications Type
Top Running | Underhung | Single Girder
Specifications Usage
Extreme Conditions | Indoor Use | Outdoor Use
Specifications Wheel Diameter
12 inches
Specifications Wheel Load Per Wheel
12090 lbs.
