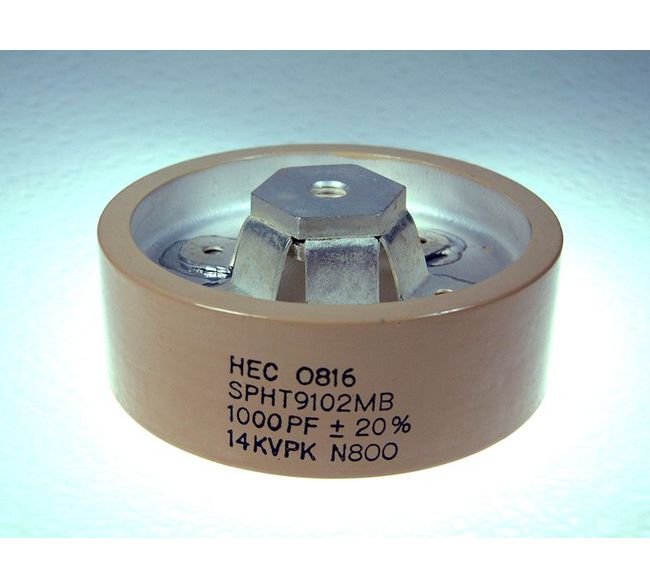

100 mm Diameter Power Disk Ceramic Capacitors - SPHT Series

Name: 100 mm Diameter Power Disk Ceramic Capacitors - SPHT Series
Brand: High Energy Corp.
SKU: CER-ebe9fa
Price: 39.99 USD
Availability: OutOfStock

SKU:CER-ebe9fa

Enhance power systems with SPHT 100 mm Capacitors - Up to 30 kVDC, 90 kVA, 50-7000 pF - N750 Dielectric, 13 kV - High Performance

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your power systems with the SPHT 100 mm Diameter Power Disk Ceramic Capacitors. With a high working voltage of up to 30 kVDC, a power rating of up to 90 kVA, and a capacitance range of 50 to 7000 pF, these capacitors are designed for robust performance. Available in 70, 100, 140, and 165 mm diameters, and offering a choice of four Class I TC's, these capacitors ensure reliability and flexibility in your applications. The SPHT series capacitors feature a dielectric of N750, a maximum DC voltage of 13 kV, and can handle a maximum RMS current of 35 A. Suitable for a wide range of power applications, the 100 mm diameter power disk ceramic capacitors deliver efficiency and durability.

Product Specifications

Specifications Cap

1000 pF

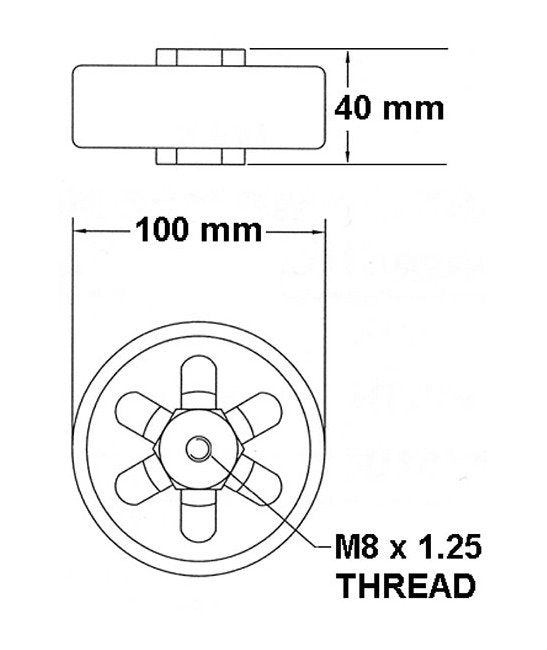

Specifications Diameter

100 mm

Specifications Dielectric Tc

N750

Specifications Fh

4.87 MHz

Specifications Fl

0.0753 MHz

Specifications Imax Rms

35 A

Specifications Smax

40 kV·A

Specifications Thread

Specifications Vmax Dc

13 kV
