100 mm SPHT Power Disk Ceramic Capacitors
100 mm SPHT Power Disk Ceramic Capacitors
SKU:CER-67618f
High-performance SPHT ceramic capacitors - 100 mm diameter, 500 pF capacitance, 14 kVDC, N750 dielectric, ideal for industrial use
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
100 mm SPHT Power Disk Ceramic Capacitors
$49.99
Quantity: 1
Claim Your Seller Account
100 mm SPHT Power Disk Ceramic Capacitors
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

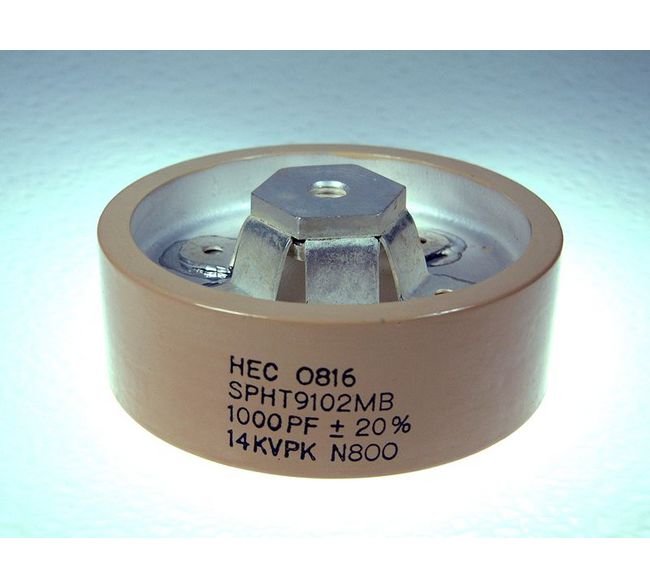

The SPHT 100 mm Diameter Power Disk Ceramic Capacitors are designed for high-performance applications, featuring a capacitance range of 50 to 7000 pF and a durable N750 dielectric material supporting up to 14 kVDC working voltage. With a power rating of up to 90 kVA and a frequency range from 0.130 MHz to 9.74 MHz, these capacitors ensure reliable operation in demanding environments. Available in 100 mm diameter with M8 thread, they offer precise electrical characteristics and a choice of four Class I temperature coefficients, making them ideal for diverse industrial and institutional applications.
Product Specifications
Specifications Cap
500 pF

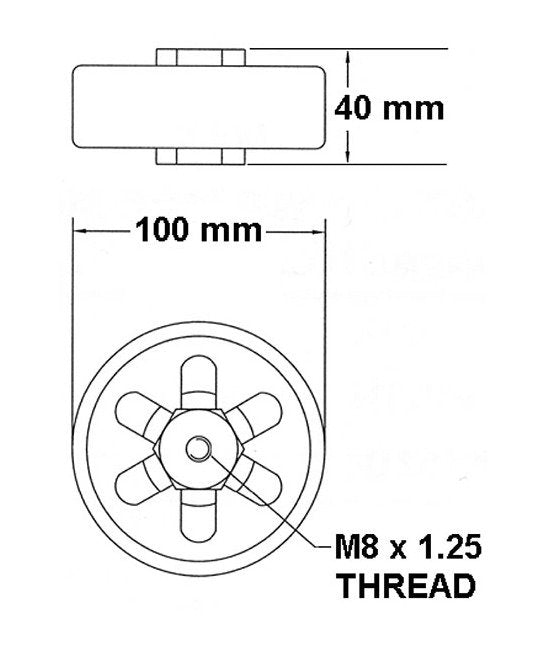

Specifications Diameter
100 mm
Specifications Dielectric Tc
N750
Specifications Fh
9.74 MHz
Specifications Fl
0.130 MHz
Specifications Imax Rms
35 A
Specifications Smax
40 kV·A
Specifications Thread
M8
Specifications Vmax Dc
14 kV
