1000 lb Capacity Free Standing Bridge Crane - 10-15 ft Length
1000 lb Capacity Free Standing Bridge Crane - 10-15 ft Length
Maximize efficiency with our 1000 lb free-standing bridge crane, spanning 10-15 ft. Complies with top industry standards.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
1000 lb Capacity Free Standing Bridge Crane - 10-15 ft Length
$2,899.99
Quantity: 1
Claim Your Seller Account
1000 lb Capacity Free Standing Bridge Crane - 10-15 ft Length
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

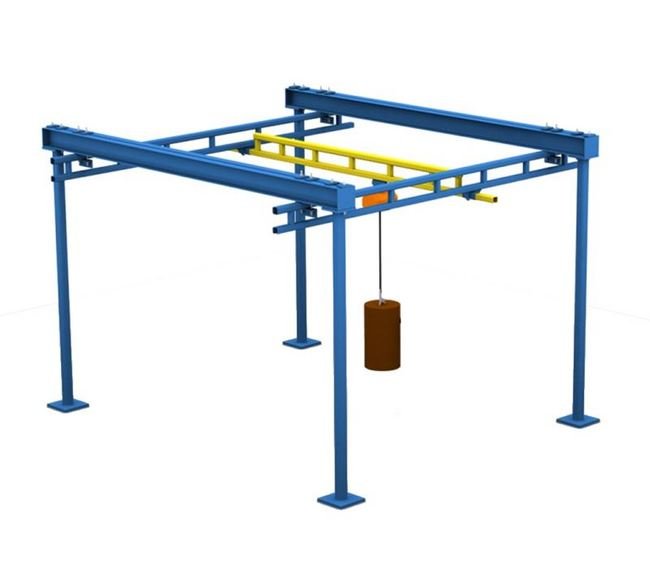

Enhance efficiency with our 1000 lb capacity free-standing work station bridge crane, spanning 10 to 15 feet in length. Constructed with durable aluminum and steel materials, this crane kit includes bridge, runways, support assemblies, hoist trolley, end trucks, and more. Designed to streamline operations and maximize safety, it offers a maximum hanger centerline of 20 ft and complies with top industry standards like GSA requirements and FAR compliance factors.
Product Specifications
Note 0
To Determine Hook Coverage: [Bridge Travel on Runway = Runway Length - (2 x L8)] by [Hoist Trolley Travel on Bridge = Bridge Length - L3 - L6] (L6 allows for festoon stack-up).Gorbel® Free Standing Work Station Bridge Crane Kits include: bridge, runways, the appropriate number of support assemblies, hoist trolley, end trucks, end stops, flat wire festooning, festoon gliders (festoon trolleys on steel runway lengths greater than 63' and all aluminum systems), festoon stack-up section, splice joints and hanger brackets. Hoist and anchor bolts provided by others.Dimensions are for reference only and are subject to change without notice.
Specifications Bridge H3
18-1/8 in
Specifications Bridge H3a
22-1/8 in
Specifications Bridge H4
14-1/8 in
Specifications Bridge L3
7-7/8 in
Specifications Bridge L6
23-3/8 in
Specifications Bridge Length L
15 ft
Specifications Capacity
1000 lb
Specifications Maximum Bridge Cantilever L5
24 in
Specifications Maximum Hanger Centerline Runway L1
20 ft
Specifications Maximum Runway Cantilever L9
48 in
Specifications Maximum Splice Joint Centerline To Hanger Centerl
48 in
Specifications Runway L7
9 in
Specifications Runway L8
15 in
Specifications Runway Length
23 ft
Specifications Series
GLCS
Specifications Support Structure D
4 in
Specifications Support Structure Overall Height
11 ft 10-5/8 in
Specifications Support Structure Overall Width
16 ft 6 in
Specifications Support Structure Spt
2
Specifications Track Material
Aluminum | Steel
Specifications Trolley Saddle Height
10 ft
Specifications Weight Per Foot
12.25 lb
