1000 Series 4ft Horizontal Laminar Flow Hood
1000 Series 4ft Horizontal Laminar Flow Hood
SKU:100-49aa67
Durable 4ft Free Standing Laminar Flow Hood with low sound & energy consumption. Offers chemical resistance & optional upgrades.
Regular price
$8,999.00
Regular price
Sale price
$8,999.00
Unit price
per
Initiate Order
1000 Series 4ft Horizontal Laminar Flow Hood
$8,999.00
Quantity: 1
Claim Your Seller Account
1000 Series 4ft Horizontal Laminar Flow Hood
$8,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

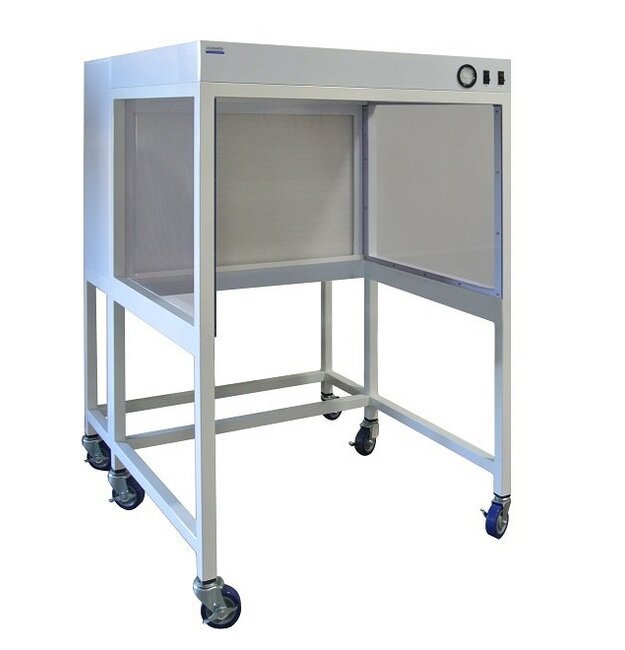

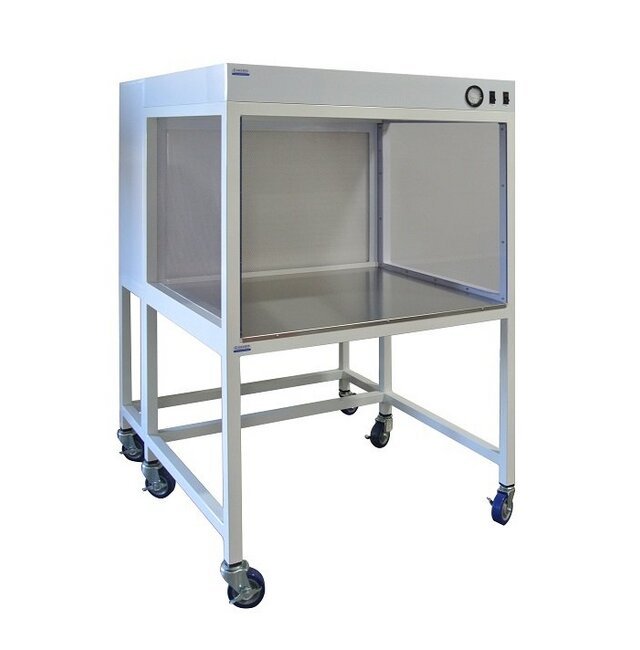

The 1000 Series 4ft Free Standing Horizontal Laminar Flow Hood is designed for exceptional chemical resistance and durability. Constructed with 1/4" Thick White Polypropylene and coated steel, it offers options for clear PVC, static-dissipative PVC, or stainless steel side windows. With an average airflow velocity of 90 ft/min, it provides a certified fan filter module meeting IEST recommended practices for low sound and energy consumption. Additional upgrades include ULPA filters, ionizing bar for static control, and optional UV-C sanitation light.
Product Specifications
Additional Information Additional Information
HEPA filters are 99.99% efficient at removing 0.3µm or larger particles. Filters can be upgraded to ULPA filters that are 99.999% efficient at removing 0.12µm or larger particles.The module includes a washable polyurethane foam pre-filter.Minihelic Gauge (0-1" Water Column). The gauge monitors pressure differential and when it exceeds the limit, the filter needs to be replaced.Includes a built-in white LED light.
Options Options
Upgrade side windows to clear PVC, static-dissipative PVC or stainless steel.Filter upgrade to ULPA filters that are 99.999% efficient at removing 0.12µm particles.Ionizing bar to control electrostatic charges and provides a continuous stream of static-neutralizing ions.30" UV-C sanitation light with a manual switch.304 Stainless Steel Worksurface or Work Table.
Specifications Air Flow Direction
Horizontal
Specifications Average Airflow Velocity
90 ft/min
Specifications High Speed Air Flow Per Module
580 ft³/min
Specifications Hood Width
4 ft
Specifications Material
Coated Steel | White Polypropylene
Specifications Material Thickness
1/4 in
Specifications Overall Depth
45 in
Specifications Overall Height
65 in
Specifications Overall Width
52 in
Specifications Style
Free Standing with Optional Table
Specifications Work Space Depth
30 in
Specifications Work Space Height
24.5 in
Specifications Work Space Width
48.5 in
