1000 Series 6ft Free Standing Horizontal Laminar Flow Hood
1000 Series 6ft Free Standing Horizontal Laminar Flow Hood
SKU:100-e4cded
Highly resistant 6ft Free Standing Laminar Flow Hood with certified fan module and upgradeable filter options for efficient performance.
Regular price
$5,699.99
Regular price
Sale price
$5,699.99
Unit price
per
Initiate Order
1000 Series 6ft Free Standing Horizontal Laminar Flow Hood
$5,699.99
Quantity: 1
Claim Your Seller Account
1000 Series 6ft Free Standing Horizontal Laminar Flow Hood
$5,699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

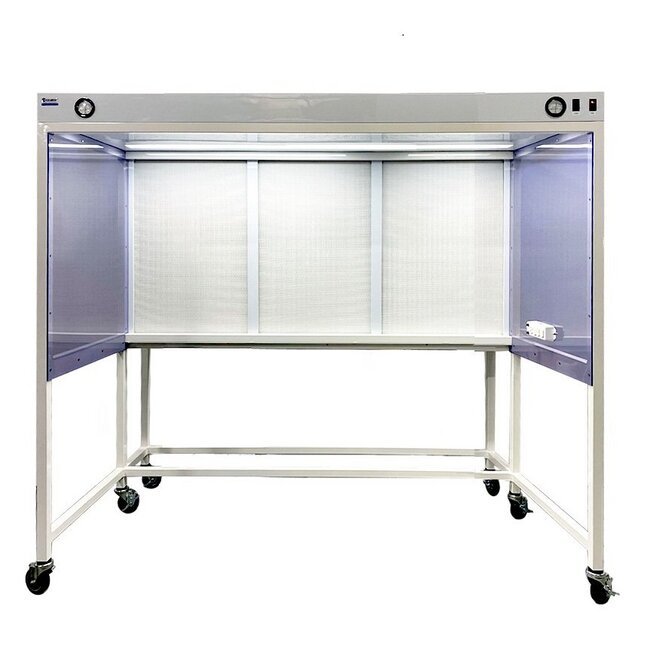

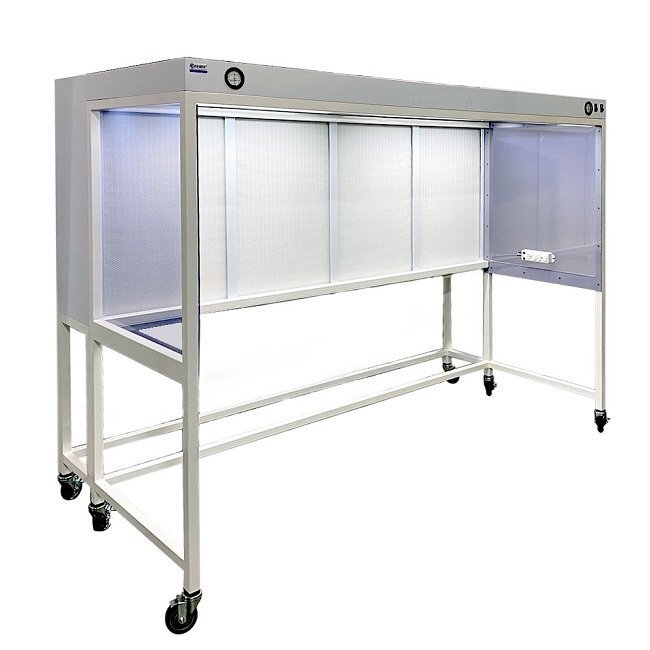

The 1000 Series 6ft Free Standing Horizontal Laminar Flow Hood is expertly crafted from 1/4" Thick White Polypropylene and coated steel for exceptional resistance to corrosive elements. With options for side window materials including clear PVC and stainless steel, this hood ensures easy transportation due to separate back filter housing. Featuring a certified fan filter module meeting IEST standards for low sound and energy consumption, it operates at 90 FPM with a sound level of 50 dBA. Upgradeable options to ULPA filters, ionizing bar for electrostatic control, and UV-C sanitation light make this flow hood a versatile and efficient choice.
Product Specifications
Additional Information Additional Information
Two Minihelic Gauges (0-1" Water Column). The gauge monitors pressure differential and when it exceeds the limit, the HEPA filter needs to be replaced.Includes a built-in white LED light.
Options Options
Upgrade side windows to clear PVC, static-dissipative PVC or stainless steel.Filter upgrade to ULPA filters that are 99.999% efficient at removing 0.12µm particles.Ionizing bar to control electrostatic charges and provides a continuous stream of static-neutralizing ions.UV-C sanitation light with a manual switch.304 Stainless Steel Worksurface or Work Table.
Specifications Air Flow Direction
Horizontal
Specifications Average Airflow Velocity
90 ft/min
Specifications High Speed Air Flow Per Module
580 ft³/min
Specifications Hood Width
6 ft
Specifications Material
Coated Steel | White Polypropylene
Specifications Material Thickness
1/4 in
Specifications Overall Depth
45 in
Specifications Overall Height
75 in
Specifications Overall Width
76 in
Specifications Style
Free Standing with Optional Table
Specifications Work Space Depth
30 in
Specifications Work Space Height
35 in
Specifications Work Space Width
72.5 in
