The 100MHz TCXO Temperature-Compensated Crystal Oscillator by Greenray Industries is designed to excel in high shock and vibration environments, meeting stringent institutional procurement standards. With a rugged, radiation-tolerant construction, this TCXO ensures stability with features like ultra-low acceleration sensitivity, low phase noise, and a clipped sine output. Ideal for applications in high orbit transponders, satellites, and telemetry systems, this TCXO offers superior performance in demanding environments.
Product Specifications
Applications Applications
High orbit transpondersLow orbit satellites (nano/micro satellites)RF telemetry systemsMultiband terminalUpconverter
Direct Current Dc Supply Direct Current Dc Supply Voltage
3.3 V | 5 V
Direct Current Dc Supply Maximum Direct Current Dc Supply Voltag
3.6 V | 5.25 V
Direct Current Dc Supply Maximum Supply Current
35 mA
Direct Current Dc Supply Minimum Direct Current Dc Supply Voltag
3.0 V | 4.75 V
Direct Current Dc Supply Direct Current Dc Supply Voltag
3.3 V | 5.0 V
Electrical Characteristics Maximum Acceleration Sensitivity
0.07 ppb/g | 0.7 ppb/g
Electrical Characteristics Maximum Aging Tolerance For 1 Year
1 ppm
Electrical Characteristics Maximum Frequency Versus Voltage For
0.3 ppm
Electrical Characteristics Maximum Nominal Frequency At 25 Degre
100 MHz
Electrical Characteristics Maximum Short Term For A 1 Second Tau
1 ppb
Electrical Characteristics Minimum Nominal Frequency At 25 Degre
10 MHz
Electrical Characteristics Note For Maximum Acceleration Sensiti
Acceleration Sensitivity is worst axis tested at 90 Hz, 10 g
Electrical Characteristics Note For Electronic Frequency
EFC = VDD to 0 Negative slope
Electrical Characteristics Electronic Frequency Control
7 ppm
Electrical Characteristics Frequency Stability At 20 To
1 ppm
Electrical Characteristics Frequency Stability At 40 To
5 ppm
Electrical Characteristics Frequency Stability At 55 To
7.0 ppm
Environmental Radiation
Unit shall continue to operate during exposure to 100 krad (Si)
Environmental Shock
StandardMIL-STD-883Method, Condition2002, Cond BDescription1,500 g, 0.5 ms half-sine
Environmental Vibration
StandardMIL-STD-883Method, Condition2007, Cond ADescription50 g, 20 to 2,000 Hz, swept sine
Features Features

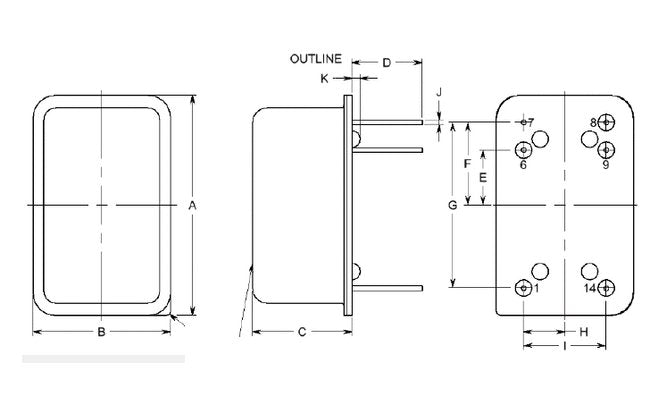

100 krad (Si) total ionizing doseRugged, radiation tolerant 20.3 x 12.7mm packageStability: ±1.0ppm (-20°C to +70°C)Ultra-low acceleration sensitivity < 0.07 ppb/gClipped sine output
Phase Noise Performance Phase Noise At 10 Megahertz Mhz
-155 dBc/Hz
Radio Frequency Rf Output Sinewave Minimum Level
+1.5 Vpp
Radio Frequency Rf Output Sinewave Load At 10 Kiloohm Ko
10 pF
Recommendation And General Information Marking
Line 1: Greenray logo Line 2: ModelLine 3: FrequencyLine 4: Serial Number + Data Code (YYWW)
Recommendation And General Information Operating Temperature
-55 to +125 ºC
Recommendation And General Information Package Weight
3 g
Recommendation And General Information Shipping
Tray Pack
Recommendation And General Information Soldering Instruction
Hand Solder Only
Recommendation And General Information Storage Temperature
-65 to +125 ºC
Recommendation And General Information Terminal Finish
Lead Free | SnPb
Specifications Frequency Range
10 to 100 MHz
Specifications Package Finish
Stainless Steel and Nickel-plated Kovar
