The 100MHz TCXO Temperature-Compensated Crystal Oscillator by Greenray Industries is designed for high shock and vibration environments, housed in a rugged, radiation-tolerant package. With a frequency range of 10 to 100 MHz, this oscillator offers exceptional stability across temperatures from -55 to +125°C. It features low acceleration sensitivity, ultra-low phase noise, and meets stringent industry standards for reliability and performance. Ideal for high orbit transponders, RF telemetry systems, and nano/micro satellites.
Product Specifications
Applications Applications
High orbit transpondersLow orbit satellites (nano/micro satellites)RF telemetry systemsMultiband terminalUpconverter
Benefits Benefits
TCXO performance in a rugged, radiation tolerant package
Direct Current Dc Supply Direct Current Dc Supply Voltage
3.3 V | 5 V
Direct Current Dc Supply Maximum Direct Current Dc Supply Voltag
3.6 V | 5.25 V
Direct Current Dc Supply Maximum Supply Current At Complementary
35 mA
Direct Current Dc Supply Minimum Direct Current Dc Supply Voltag
3.0 V | 4.75 V
Direct Current Dc Supply Direct Current Dc Supply Voltag
3.3 V | 5.0 V
Electrical Characteristics Maximum Acceleration Sensitivity
0.07 ppb/g | 0.7 ppb/g
Electrical Characteristics Maximum Aging Tolerance For 1 Year
1 ppm
Electrical Characteristics Maximum Frequency Versus Voltage For
0.3 ppm
Electrical Characteristics Maximum Nominal Frequency At 25 Degre
100 MHz
Electrical Characteristics Maximum Short Term For A 1 Second Tau
1 ppb
Electrical Characteristics Minimum Nominal Frequency At 25 Degre
10 MHz
Electrical Characteristics Note For Electronic Frequency
Expenditure Finance Committee (EFC) is Equal to Voltage Drain Drain (VDD) (±) to 0 Negative Slope
Electrical Characteristics Electronic Frequency Control
7 ppm
Electrical Characteristics Frequency Stability At 20 To
1 ppm
Electrical Characteristics Frequency Stability At 40 To
5 ppm
Electrical Characteristics Frequency Stability At 55 To
7 ppm
Environmental Radiation
Unit Shall Continue to Operate During Exposure to 30 krad (Si)
Environmental Shock
StandardMIL-STD-883Method, Condition2002, Cond B Description 1,500 g, 0.5 ms half-sine
Environmental Vibration
StandardMIL-STD-883Method, Condition2007, Cond ADescription50 g, 20 to 2,000 Hz, swept sine
Features Features

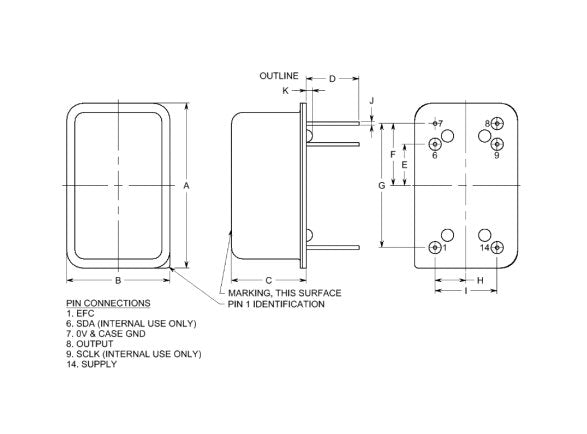

30 krad (Si) total ionizing doseRugged, radiation tolerant 20.3 x 12.7mm packageUltra-low acceleration sensitivity < 0.07 ppb/gCMOS output
Phase Noise Performance Phase Noise At 10 Megahertz Mhz
-155 dBc/Hz
Radio Frequency Rf Output Sinewave Maximum Level At 33 Volt V Su
+ 0.2 V "1" Level
Radio Frequency Rf Output Sinewave Maximum Level At 50 Volt V Su
+ 0.2 V "1" Level
Radio Frequency Rf Output Sinewave Maximum Symmetry At Complemen
60 %
Radio Frequency Rf Output Sinewave Minimum Level At 33 Volt V Su
+ 2.8 V "1" Level
Radio Frequency Rf Output Sinewave Minimum Level At 50 Volt V Su
+ 4.5 V "1" Level
Radio Frequency Rf Output Sinewave Minimum Symmetry At Complemen
40 %
Radio Frequency Rf Output Sinewave Load
15 pF
Radio Frequency Rf Output Sinewave Symmetry Of Metal Oxi
50 %
Recommendation And General Information Marking
Line 1: Greenray logoLine 2: ModelLine 3: FrequencyLine 4: Serial Number + Data Code (YYWW)Line 5: Lot Number
Recommendation And General Information Operating Temperature
-55 to +125 ºC
Recommendation And General Information Package Weight
3 g
Recommendation And General Information Shipping
Tray Pack
