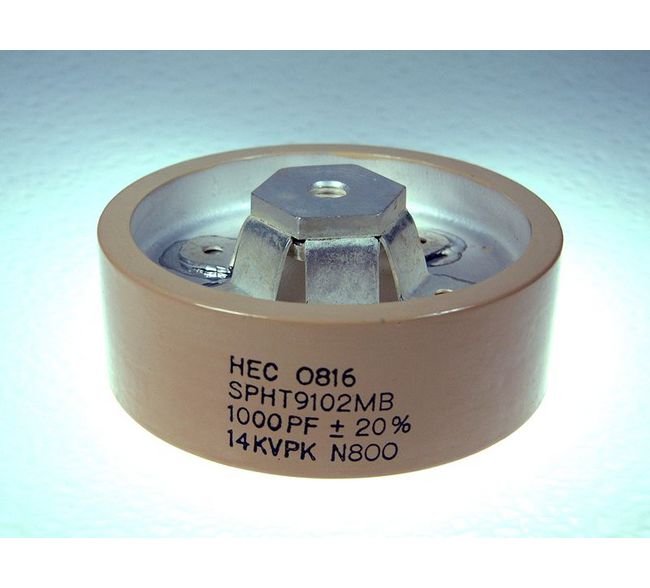

100mm Power Disk Ceramic Capacitors - SPHT Series
100mm Power Disk Ceramic Capacitors - SPHT Series
SKU:CER-1106a2
Enhance power systems with SPHT 100mm Power Disk Ceramic Capacitors: up to 30 kVDC, 90 kVA, 50-7000 pF, 100mm dia, ±5-20% cap tolerance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
100mm Power Disk Ceramic Capacitors - SPHT Series
$49.99
Quantity: 1
Claim Your Seller Account
100mm Power Disk Ceramic Capacitors - SPHT Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your power systems with our SPHT 100mm Diameter Power Disk Ceramic Capacitors. This high-performance capacitor boasts a working voltage of up to 30 kVDC and a power rating of up to 90 kVA, ensuring robust operation. With a capacitance range from 50 to 7000 pF and diameter options of 70, 100, 140, and 165 mm, this capacitor offers versatility. Choose from four Class I TC's for precise applications. Engineered with specifications including capacitance range of 100 to 1600 pF, SMAX of 40 kV·A, and a 100mm diameter, this capacitor guarantees reliable performance with capacitance tolerance options of ±5%, ±10%, or ±20%.
Product Specifications
Specifications Cap
100 to 1600 pF
Specifications Capacitance Tolerance
±5% | ±10% | ±20%
Specifications Diameter
100 mm
Specifications Smax
40 kV·A
