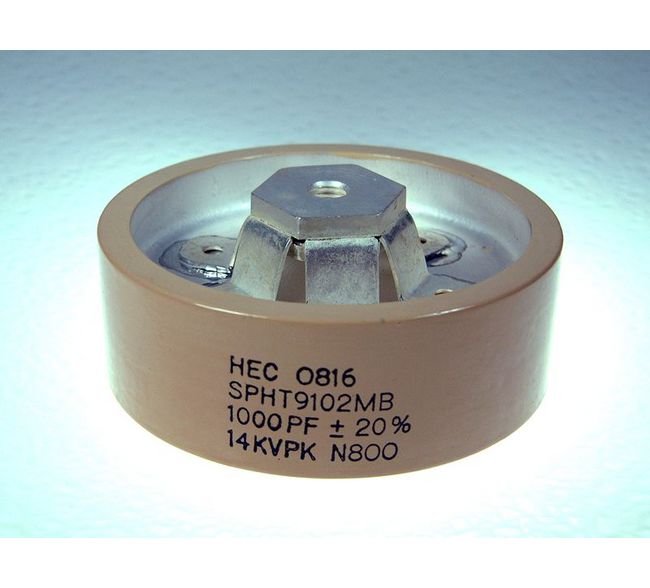

100mm SPHT Power Disk Ceramic Capacitors

Name: 100mm SPHT Power Disk Ceramic Capacitors
Brand: High Energy Corp.
SKU: CER-1a6981
Price: 75.99 USD
Availability: OutOfStock

SKU:CER-1a6981

Enhance power systems with high-performing 100mm Ceramic Capacitors. 11 kVDC, 40 kV·A, N750 Dielectric, and Class I TC options for precision.

$75.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

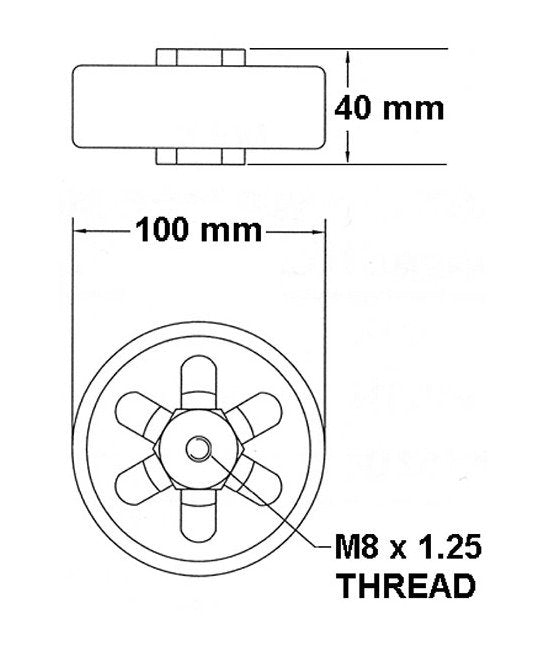

Upgrade your power systems with the SPHT 100 mm Diameter Power Disk Ceramic Capacitors. With a high Working Voltage of up to 11 kVDC and a robust Power Rating of 40 kV·A, these capacitors ensure reliable performance. Featuring a capacitance range of 50 to 7000 pF and N750 Dielectric, they provide excellent electrical properties. Choose from four Class I TC options for precise tuning. Designed with a 100 mm Diameter and M8 Thread, these capacitors offer durability and seamless integration. Meet institutional procurement standards with this cutting-edge solution.

Product Specifications

Specifications Cap

1600 pF

Specifications Diameter

100 mm

Specifications Dielectric Tc

N750

Specifications Fh

3.04 MHz

Specifications Fl

0.0657 MHz

Specifications Imax Rms

35 A

Specifications Smax

40 kV·A

Specifications Thread

Specifications Vmax Dc

11 kV
