100mm Stock F-Theta Lens for 355nm/532nm Laser Systems
100mm Stock F-Theta Lens for 355nm/532nm Laser Systems
SKU:STO-e3cb16
High-performance 100mm F-Theta Lens for precise laser scanning. Wide scan field, adjustable focal spot, and precise imaging for industrial applications.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
100mm Stock F-Theta Lens for 355nm/532nm Laser Systems
$599.99
Quantity: 1
Claim Your Seller Account
100mm Stock F-Theta Lens for 355nm/532nm Laser Systems
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

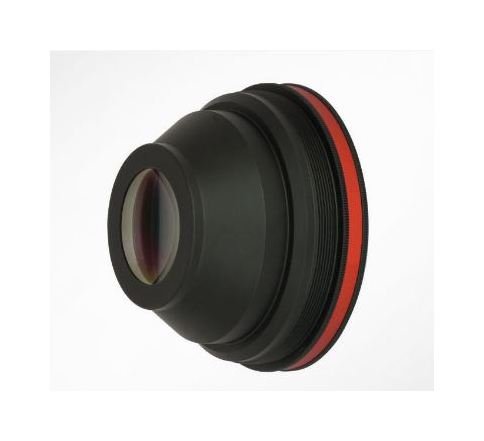

The SO-FT-070-100 Stock F-Theta Lens is a precision optical component designed for high-performance laser scanning systems. With an effective focal length of 100mm and scanning width of 70*70 mm, this lens delivers exceptional image quality and accuracy. Featuring multiple pupil diameter options, telecentric angle settings, and precise mounting threads, it ensures flexibility and compatibility with a range of laser systems. The lens offers a wide scan field of ±25mm to ±29.2mm, with a telecentric angle of 3 to 4 degrees, making it ideal for applications requiring precise imaging and scanning capabilities. The compact design, adjustable focal spot diameter, and optimized working distance make it a valuable component for industrial and research applications.
Product Specifications
Specifications Effective Focal Length
100 mm
Specifications Flange Distance
186.91 mm | 189.03 mm | 205.18 mm
Specifications Focal Spot Diameter
10.0-14.0 | 20-58 | 7.0-11.6
Specifications M1 M2 Distance
13 mm | 16.42 mm
Specifications M2 Lens Center
23.95 mm | 37.4 mm | 40 mm
Specifications M2 Threaded End
29.53 mm | 32.55 mm | 37.51 mm
Specifications Mounting Threads
M85Ã1
Specifications Pupil Diameter
10 mm | 12 mm | 14 mm
Specifications Scanning Width
70*70 mm
Specifications Scan Field
±25 mm | ±28.8 mm | ±29.2 mm
Specifications Telecentric Angle
3 | 4
Specifications Wavelength
355 nm | 532 nm
Specifications Working Distance
123.41 mm | 125.18 mm | 93.03 mm
