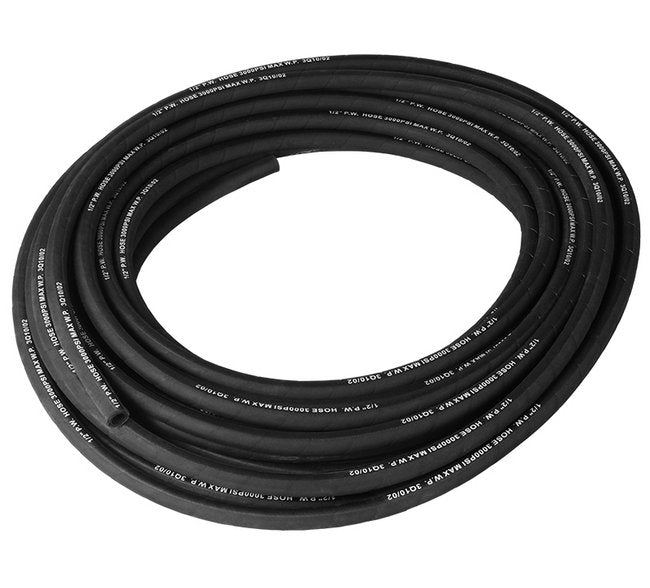

100R1AT Hydraulic Single Braid - Medium Pressure Bulk Coils
100R1AT Hydraulic Single Braid - Medium Pressure Bulk Coils
SKU:HOS-53e849
Premium 100R1AT hydraulic hose: 2000 psi working pressure, -40 to +250 °F temp range, SAE J517 compliant, for mineral oil & glycol. Buy by the foot!
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
100R1AT Hydraulic Single Braid - Medium Pressure Bulk Coils
$129.99
Quantity: 1
Claim Your Seller Account
100R1AT Hydraulic Single Braid - Medium Pressure Bulk Coils
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 100R1AT Hydraulic Single Braid is a top-tier hose suitable for mineral oil and glycol base liquids. With working pressure reaching 2000 psi and bursting at 8000 psi at 70°F, it excels in performance and durability. This hose exceeds SAE J517 standards and features oil and weather-resistant synthetic rubber cover, oil-resistant synthetic rubber tube, and one steel wire braid reinforcement. Operating temperature ranges from -40 to +250 °F, making it versatile across varied conditions. Sold by the foot.
Product Specifications
Specifications Bend Radius
7 in
Specifications Burst Pressure 70
8000 psi
Specifications Cover
Oil and Weather Resistant Synthetic Rubber
Specifications Id
1/2 in
Specifications Od
0.82 in
Specifications Package Type
Feet
Specifications Reinforcement
One Steel Wire Braid
Specifications Temperature Range
-40 to +250 ºF
Specifications Tube
Oil Resistant Synthetic Rubber
Specifications Weight Per 100 Foot
26.2 lb
Specifications Working Pressure
2000 psi
