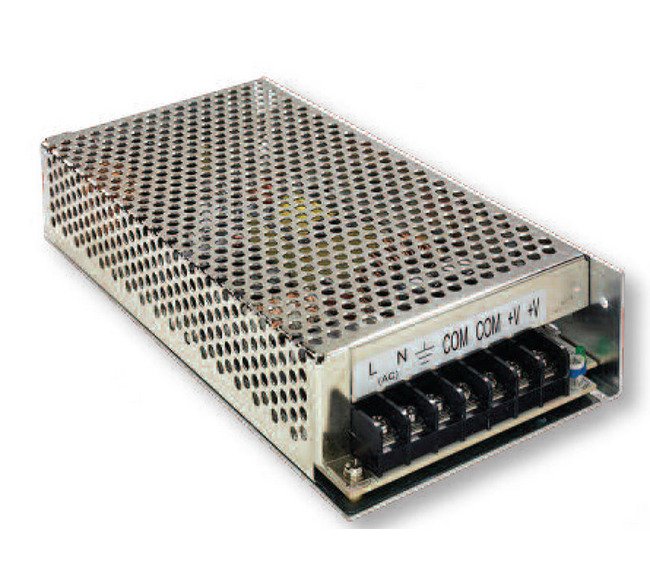

The AWSP100 Series 100 Watt Single Output Enclosed Switching Power Supply with Power Factor Correction (PFC) is a reliable solution for general purpose applications. With an input voltage range of 88 to 264 VAC, this power supply offers efficient power conversion with high power factor (>0.92). Its output characteristics include over current and over voltage protection, ensuring stable and safe operation. With a compact design and a warranty of 2 years, this power supply is a versatile choice for various industries.
Product Specifications
Connector Types Input Terminal
Screw
Connector Types Output Terminal
Screw
Emc Safety Specifications Emc Emissions
Conforms to EN55022,VCCI,CISPR22 Class B (Conducted & Radiated); IEC-61000-4-2, 61000-4-4, 61000-4-5, 61000-4-11
Emc Safety Specifications Safety Approval
UL 60950 (UL File No: E204980)
Environmental Specifications Humidity
20 to 90 % RH, non-condensing

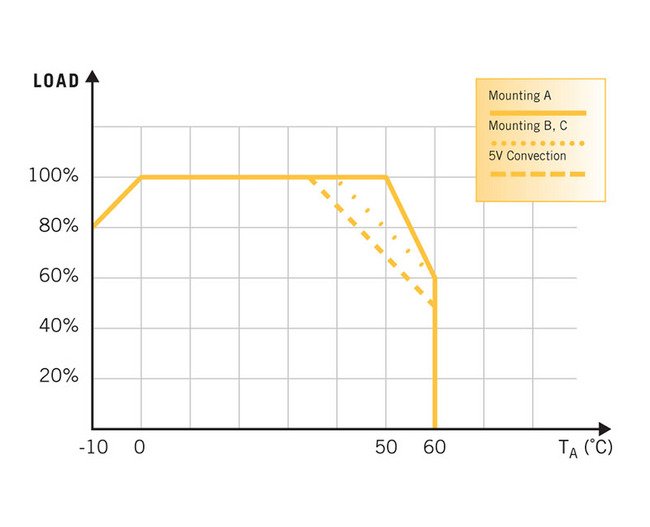

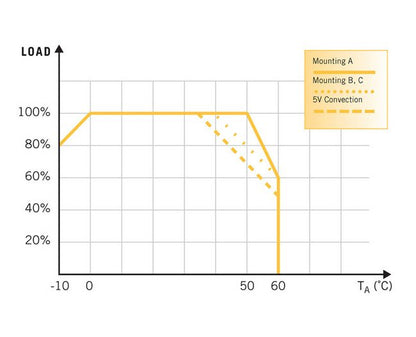

Environmental Specifications Operating Temperature
0 to 60 ºC Full Load
Environmental Specifications Reliability
>167,000 Hours MTBF
Environmental Specifications Storage Temperature
-25 to +75 ºC
Environmental Specifications Vibration
10 to 55 Hz, 2G 1 min/cycle, period of 60 min, each axis.
General Specifications Gross Weight
610 g

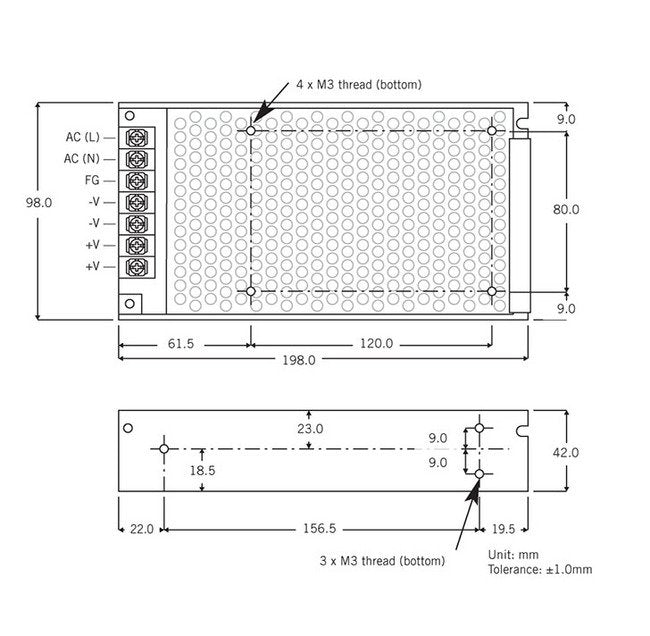

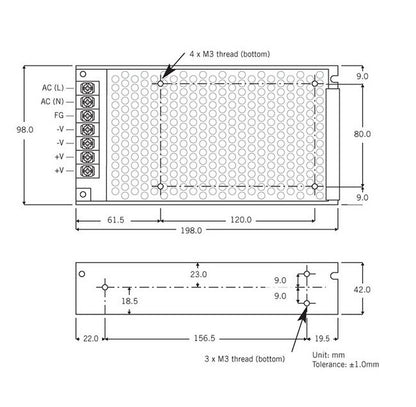

General Specifications Height H
1.65 in | 42 mm
General Specifications Length L
7.83 in | 199 mm
General Specifications Net Weight
560 g
General Specifications Switching Frequency
134 kHz (PWM) | 67 kHz (PFC)
General Specifications Warranty
2 years
General Specifications Width W
3.86 in | 98 mm
Input Characteristics Input Frequency Range
47 to 63 Hz
Input Characteristics Input Voltage Ac
88 to 264 V
Input Characteristics Maximum Input Current At Vin Rated
1.8 A
Input Characteristics Maximum Inrush Current At 110 220 Vac Cold
20 A | 40 A
Input Characteristics Power Factor
>0.92
Output Characteristics Adjustable Output Range
±10 %
Output Characteristics Line Regulation
±0.5 %
Output Characteristics Load Regulation
±1.0 %
Output Characteristics Maximum Rise Up Time 100 Load At 230 Vac
600 ms
Output Characteristics Minimum Hold Up Time 100 Load At 230 Vac
20 ms
Output Characteristics Minimum Load
No
Output Characteristics Over Current Protection Power Cycle Reset
105 to 150 %
Output Characteristics Over Voltage Protection
125 to 145 %
Output Characteristics Ripple And Noise
100 mV
Output Characteristics Start Up Time At 230 Vac
300 ms
Specifications Cross Reference
S-100F-5
Specifications Current
20.0 A
Specifications Efficiency
75 %
Specifications Voltage
5.0 V
