103 Ratcheting Crank Wrench 22mm Square Gear

Name: 103 Ratcheting Crank Wrench 22mm Square Gear
Brand: Lowell Corporation
SKU: RAT-a178d0
Price: 39.99 USD
Availability: OutOfStock

SKU:RAT-a178d0

Versatile Model 103 Ratcheting Crank Wrench for precise machinery adjustments. Made in the USA with durable steel handle and 20-tooth gearing system.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

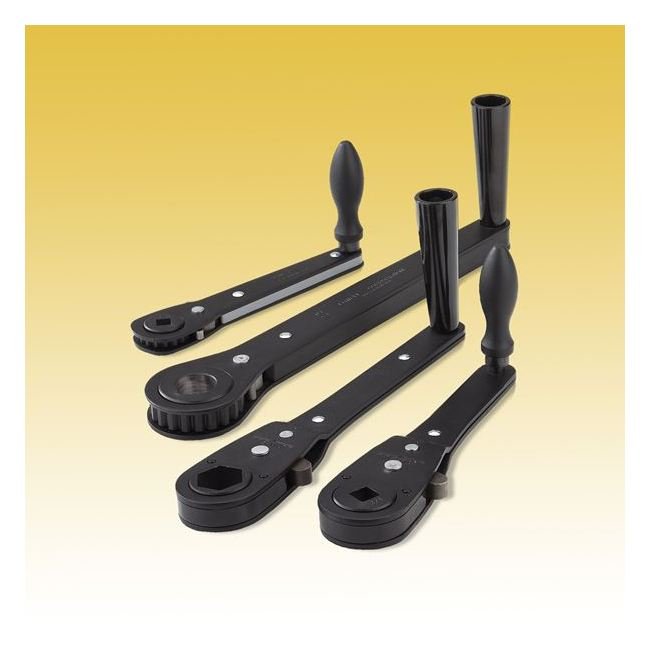

The Model 103 Ratcheting Crank Wrench with a 22mm Square Gear Opening is a versatile tool designed for machinery adjustments with precision. Made in the USA, this wrench features a fixed steel handle for durability. The 20-tooth gearing system ensures smooth ratcheting action while the reversing control enhances safety. Ideal for cross feed, rise and fall, gib and quill adjustments, this wrench is available in various custom openings to suit diverse applications.

Product Specifications

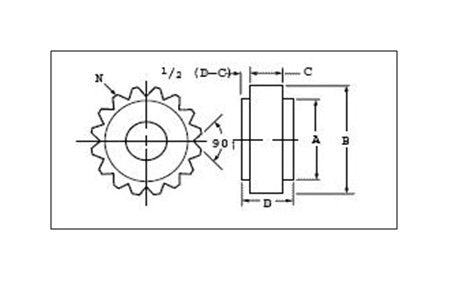

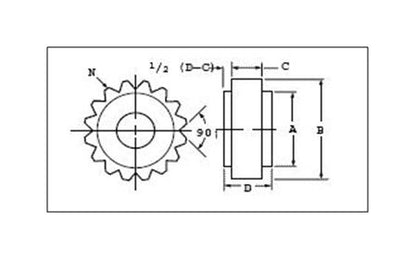

Specifications Gear Dimension A

1.840 in | 46.7 mm

Specifications Gear Dimension B

2.329 in | 59.2 mm

Specifications Gear Dimension C

.504 in | 12.8 mm

Specifications Gear Dimension D

.885 in | 22.5 mm

Specifications Gear Opening Shape

Square

Specifications Gear Opening Size

22 mm

Specifications Gear Part Number

M9622

Specifications Handle Nominal Length A

12 in | 305 mm

Specifications Handle Part Number

829L1

Specifications Model

103

Specifications Number Of Teeth

Specifications Weight

2 1/4 lb | 1.02 kg

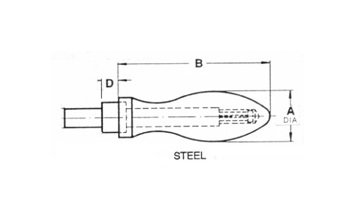

Specifications Wrench Handle Dimension A

1 3/32 in | 27.8 mm

Specifications Wrench Handle Dimension B

3 9/16 in | 90.5 mm

Specifications Wrench Handle Length

Long (103)

Specifications Wrench Handle Material

Steel

Specifications Wrench Handle Type

Fixed
