1050 Inch-Pound High Actuator Torque Ball Valve Actuator
1050 Inch-Pound High Actuator Torque Ball Valve Actuator
SKU:VAL-4900ef
Reliable 1050 in·lb Ball Valve Actuator with pneumatic actuation and versatile features for precise control.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
1050 Inch-Pound High Actuator Torque Ball Valve Actuator
$599.99
Quantity: 1
Claim Your Seller Account
1050 Inch-Pound High Actuator Torque Ball Valve Actuator
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

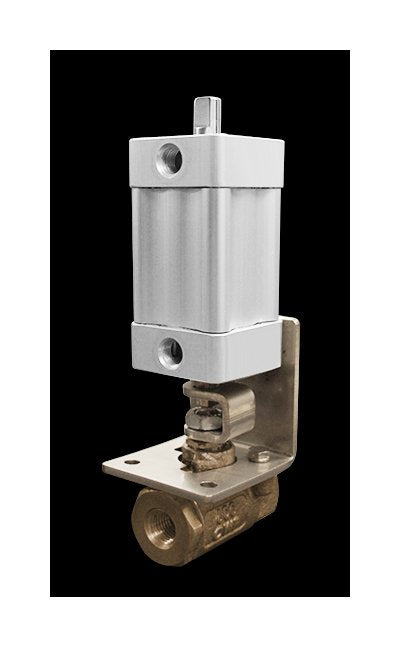

The 1050 Inch-Pound High Actuator Torque Ball Valve Actuator combines precision engineering with robust construction. Featuring a pneumatic actuation method and a vane actuator type, this double-acting system offers exceptional reliability for on/off isolating operations. With an actuator torque range of 280 to 1050 in·lb, this valve actuator ensures efficient rotary motion valve control over a wide temperature range (-20°F to 180°F). The optional limit switch and remote position indicator enhance operational convenience and safety, making it a versatile choice for heavy-duty applications.
Product Specifications
Features Features
Limit Switch / Remote Position Indicator (Optional)Manual Override of Power ActuatorNon-hazardousHeavy Duty Double Acting Ball Valve SystemsSpring Return Valve operatorsSingle acting with spring close or openValve Operator Systems
Specifications Acting Type
Double Acting (Air to Air)
Specifications Actuation Method
Pneumatic
Specifications Actuator Torque High
1050 in·lb
Specifications Actuator Torque Low
280 in·lb
Specifications Actuator Type
Vane Actuator
Specifications Full Range Of Rotary Motion
Quarter Turn (90º)
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Operation
On/Off (Isolating)
Specifications Torque
140 to 800 in·lb
Specifications Valve Motion
Rotary Motion Valve
Specifications Valve Size
1/4 to 3 in
