1060-Gallon Horizontal Air Receiver Tank
1060-Gallon Horizontal Air Receiver Tank
SKU:REC-3673d3
High-quality 1060-gal Air Receiver Tank for industrial air storage. 165 psi MAWP, compact design.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
1060-Gallon Horizontal Air Receiver Tank
$2,499.99
Quantity: 1
Claim Your Seller Account
1060-Gallon Horizontal Air Receiver Tank
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

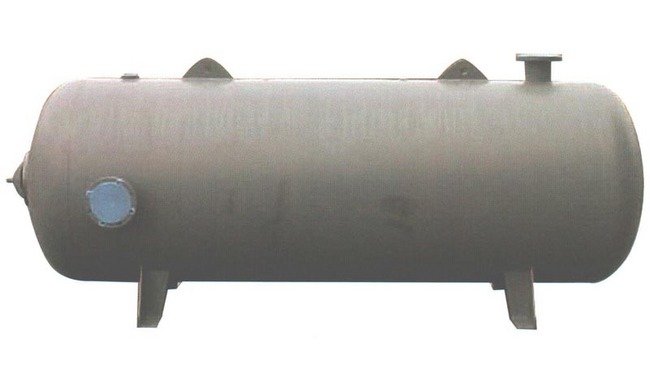

The 1060-Gallon Horizontal Air Receiver Tank is a robust solution for air storage in industrial settings. With a maximum allowable working pressure (MAWP) of 165 psi, this tank offers a nominal capacity of 1060 gallons (141.71 ft³). Its dimensions make it ideal for compact spaces, measuring 24.00" (A) x 32.00" (B) x 30.00" (C), with an overall height (HT) of 60.00". This tank is built to endure high pressures and provide reliable air storage for various applications.
Product Specifications
Financing Approve Payments
Finance with Approve Payments

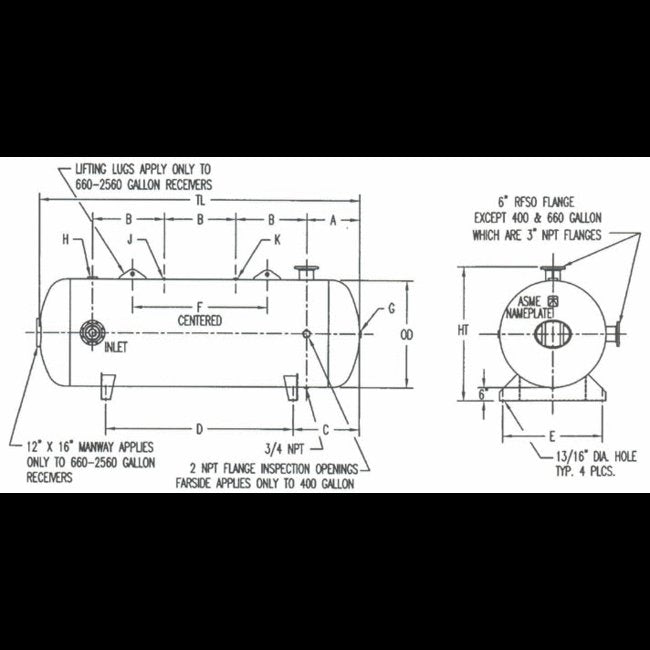

Specifications Dimension A
24.00 inches
Specifications Dimension B
32.00 inches
Specifications Dimension C
30.00 inches
Specifications Dimension D
84.00 inches
Specifications Dimension E
45.00 inches
Specifications Dimension F
60.00 inches
Specifications Ht
60.00 inches
Specifications Mawp
165 psi
Specifications Nominal Capacity
1060 gal | 141.71 ft³
Specifications Npt Opening G
2 inches
Specifications Npt Opening H
3 inches
Specifications Npt Opening J
1/4 inches
Specifications Npt Opening K
1 inches
Specifications Od
48.00 inches
Specifications Tl
144.00 inches
Specifications Tw
2200
