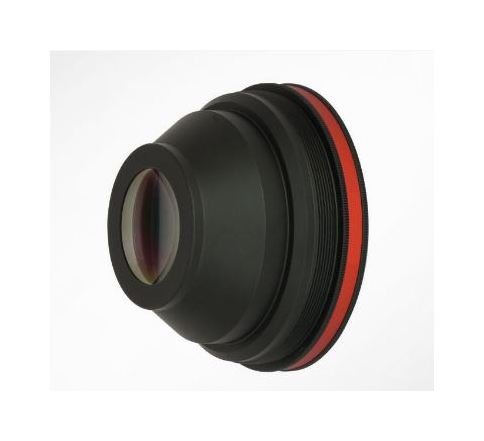

1064nm 109mm Stock F-Theta Lens
1064nm 109mm Stock F-Theta Lens
SKU:STO-ab9226
High-precision 1064nm 109mm F-Theta Lens for accurate laser applications. Meets industry standards.
Regular price
$599.99
Regular price
Sale price
$599.99
Unit price
per
Initiate Order
1064nm 109mm Stock F-Theta Lens
$599.99
Quantity: 1
Claim Your Seller Account
1064nm 109mm Stock F-Theta Lens
$599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SO-FT-050-109 Stock F-Theta Lens is a high-quality optical component designed for precision laser applications. With a wavelength of 1064 nm, an effective focal length of 109 mm, and a scanning width of 50*50 mm, this lens ensures superior performance and accuracy. Its telecentric design with a pupil diameter of 14 mm and a scan field of ±19.3 mm guarantees consistent results. Meeting strict industry standards, including FAR compliance factors and NIST standards, this lens is ideal for government and institutional procurement.
Product Specifications
Specifications Effective Focal Length
109 mm
Specifications Flange Distance
236.35 mm
Specifications Focal Spot Diameter
25.0-30.0
Specifications M1 M2 Distance
17 mm
Specifications M2 Lens Center
28 mm
Specifications M2 Threaded End
51 mm
Specifications Mounting Threads
M85Ã1
Specifications Pupil Diameter
14 mm
Specifications Scanning Width
50*50 mm
Specifications Scan Field
±19.3 mm
Specifications Telecentric Angle
2.6
Specifications Wavelength
1064 nm
Specifications Working Distance
147.35 mm
