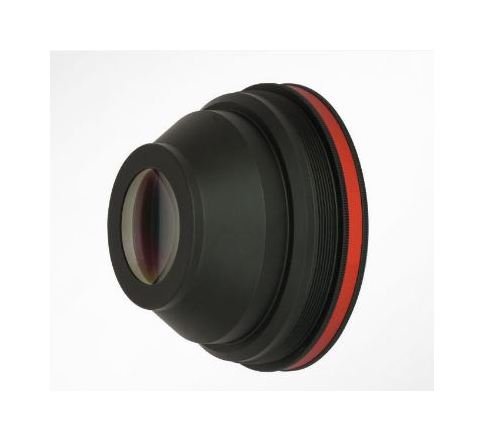

1064nm F-Theta Lens - 108mm FL
1064nm F-Theta Lens - 108mm FL
SKU:STO-1d72b5
Optimize laser scans with the 1064nm F-Theta Lens - 108mm FL. Precision and reliability for industrial needs.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
1064nm F-Theta Lens - 108mm FL
$499.99
Quantity: 1
Claim Your Seller Account
1064nm F-Theta Lens - 108mm FL
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SO-FT-069-108 Stock F-Theta Lens is designed to deliver exceptional performance for laser scanning applications. With a wavelength of 1064 nm and an effective focal length of 108mm, this lens offers precise scanning over a 69x69mm area. The lens features a pupil diameter of 12mm, telecentric angle of 1.7, and mounting threads of M85x1. It provides a scan field of ±27mm, ensuring accuracy and reliability in scanning processes. The stock lens also boasts a focal spot diameter ranging from 17.4-19.0, making it ideal for demanding industrial environments.
Product Specifications
Specifications Effective Focal Length
108 mm
Specifications Flange Distance
207.46 mm
Specifications Focal Spot Diameter
17.4-19.0
Specifications M1 M2 Distance
16 mm
Specifications M2 Lens Center
38.81 mm
Specifications M2 Threaded End
42.63 mm
Specifications Mounting Threads
M85Ã1
Specifications Pupil Diameter
12 mm
Specifications Scanning Width
69*69 mm
Specifications Scan Field
±27 mm
Specifications Telecentric Angle
1.7
Specifications Wavelength
1064 nm
Specifications Working Distance
131.19 mm
