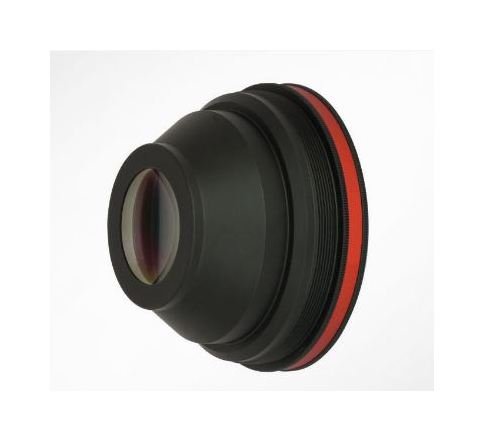

1064nm Stock F-Theta Lens with 190mm Focal Length
1064nm Stock F-Theta Lens with 190mm Focal Length
SKU:STO-73a77a
Precision designed 1064nm Stock F-Theta Lens with 190mm Focal Length for accurate imaging and wide scan field.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
1064nm Stock F-Theta Lens with 190mm Focal Length
$699.99
Quantity: 1
Claim Your Seller Account
1064nm Stock F-Theta Lens with 190mm Focal Length
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The SO-FT-090-190 Stock F-Theta Lens is a precision optical component designed for use in laser systems operating at a wavelength of 1064 nm. With an effective focal length of 190 mm and a scanning width of 90x90 mm, this lens delivers exceptional optical performance. The telecentric angle of 1 ensures accurate and distortion-free imaging, while the wide scan field of ±14 mm provides versatility. Designed with a pupil diameter of 18 mm and a mounted with M85x1 threads, this lens offers ease of integration and precise beam control. The Stock F-Theta Lens complies with Federal/DoD procurement standards and is ideal for government and institutional procurement needs.
Product Specifications
Specifications Effective Focal Length
190 mm
Specifications Flange Distance
337.38 mm
Specifications Focal Spot Diameter
22.0-31.0
Specifications M1 M2 Distance
20 mm
Specifications M2 Lens Center
20 mm
Specifications M2 Threaded End
41.04 mm
Specifications Mounting Threads
M85Ã1
Specifications Pupil Diameter
18 mm
Specifications Scanning Width
90*90 mm
Specifications Scan Field
±14 mm
Specifications Telecentric Angle
1
Specifications Wavelength
1064 nm
Specifications Working Distance
166.38 mm
