108 Inch (in) Casing Side Advanced Acoustical Cone for Woods Varofoil Fan

Name: 108 Inch (in) Casing Side Advanced Acoustical Cone for Woods Varofoil Fan
Brand: ArtUSA Noise Control Products
SKU: SIL-f182af
Price: 49.99 USD
Availability: OutOfStock

SKU:SIL-f182af

N/A

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Product Specifications

Dynamic Insertion Loss Dynamic Insertion Loss 1000 Hertz Hz 1500

28 dB

Dynamic Insertion Loss Dynamic Insertion Loss 125 Hertz Hz 1500

14 dB

Dynamic Insertion Loss Dynamic Insertion Loss 2000 Hertz Hz 1500

22 dB

Dynamic Insertion Loss Dynamic Insertion Loss 250 Hertz Hz 1500

19 dB

Dynamic Insertion Loss Dynamic Insertion Loss 4000 Hertz Hz 1500

20 dB

Dynamic Insertion Loss Dynamic Insertion Loss 500 Hertz Hz 1500

28 dB

Dynamic Insertion Loss Dynamic Insertion Loss 63 Hertz Hz 1500 F

7 dB

Dynamic Insertion Loss Dynamic Insertion Loss 8000 Hertz Hz 1500

14 dB

Note

For each 1500 FPM over 1500, add 1 dB per band.

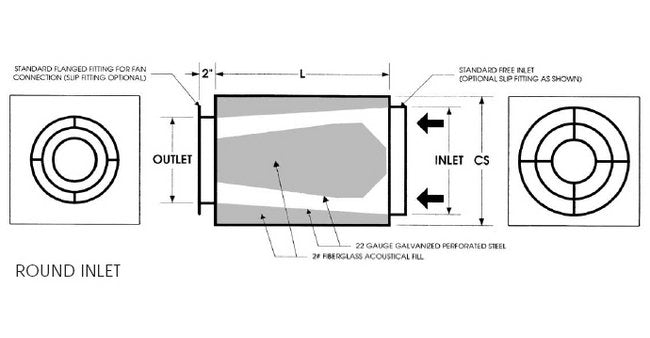

Specifications Casing Side

108 in

Specifications Inlet Diameter

101 in

Specifications Length

97 in

Specifications Maximum Air Flow

71000 ft³/min

Specifications Outlet Diameter

49.25 in

Specifications Shape Of Inletoutlet

Round Inlet

Specifications Silencer Size Class

Specifications Type

Acoustical

Specifications Use For

Woods Varofoil Fans

108 Inch (in) Casing Side Advanced Acoustical Cone for Woods Varofoil Fan
