10A Series Circuit Board Support Self-Tapping Screw

Name: 10A Series Circuit Board Support Self-Tapping Screw
Brand: All Electronics Hardware
SKU: 01C-f6c4ee
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-f6c4ee

Versatile self-tapping screw for secure, compact installations on circuit boards. Releasable PC board mount end with minimal protrusion. Meets UL94V-2, ASTM D 4066 standards, RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 10A Series Circuit Board Support Self-Tapping Screw is a versatile solution for secure installations in limited spaces. Designed for easy manual installation on chassis, this screw offers minimal protrusion, making it perfect for compact applications. Featuring a releasable PC board mount end with a Bayonet Nose design, this product ensures efficient assembly. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it meets ASTM D 4066, PA111 standards and is RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), this screw provides reliable performance in various environments.

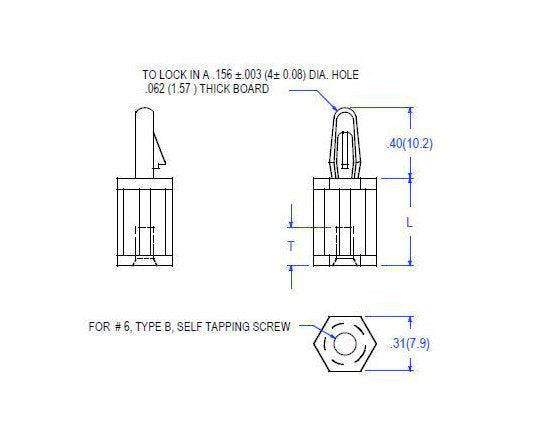

Product Specifications

Specifications Board Hole Diameter

.156 (4) +/-.003 inches (mm)

Specifications Chassis Thickness

.062 (1.57) inches (mm)

Specifications Dim L

1.14 (29) inches (mm)

Specifications Dim T

.31 (8) inches (mm)
