10A Series Circuit Board Supports Self-Tapping Screw
10A Series Circuit Board Supports Self-Tapping Screw
SKU:01C-3a0d44
10A Series Self-Tapping Screw: Easy hand installation, minimal protrusion, durable Nylon 66 material. RoHS compliant. Ideal for limited space applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
10A Series Circuit Board Supports Self-Tapping Screw
$29.99
Quantity: 1
Claim Your Seller Account
10A Series Circuit Board Supports Self-Tapping Screw
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

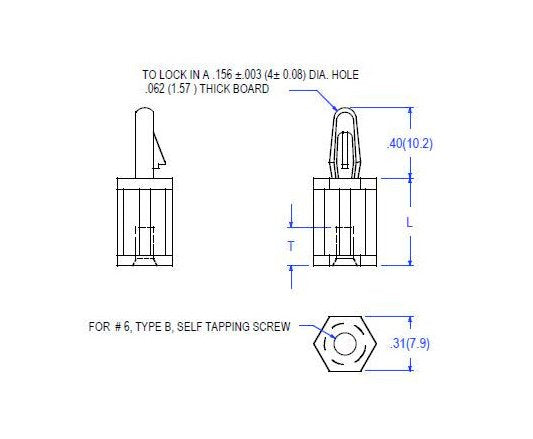

The 10A Series .156 Board Hole x #6 Self-Tapping Screw is designed for easy hand installation to chassis with minimal protrusion, making it ideal for limited space applications. Featuring a releasable PC board mount end with a bayonet nose, this product ensures secure attachment. Made of Nylon 66 UL94V-2 material (UL94V-0 available), it meets ASTM D 4066, PA111 and is RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), this screw offers durability and reliability for various industrial applications.
Product Specifications
Specifications Board Hole Diameter
.156 (4) +/-.003 inches (mm)
Specifications Chassis Thickness
.062 (1.57) inches (mm)
Specifications Dim L
.250 (6.4) inches (mm)
Specifications Dim T
.20 (5.2) inches (mm)
