10A Series Nylon .156 Board Hole x #6 Self Tapping Screw

10A Series Nylon .156 Board Hole x #6 Self Tapping Screw

SKU:01C-fdbb57

Secure and space-efficient self-tapping screw for circuit board supports, meets UL and RoHS standards

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

10A Series Nylon .156 Board Hole x #6 Self Tapping Screw

10A Series Nylon .156 Board Hole x #6 Self Tapping Screw

$29.99

Quantity: 1

Claim Your Seller Account

10A Series Nylon .156 Board Hole x #6 Self Tapping Screw

10A Series Nylon .156 Board Hole x #6 Self Tapping Screw

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

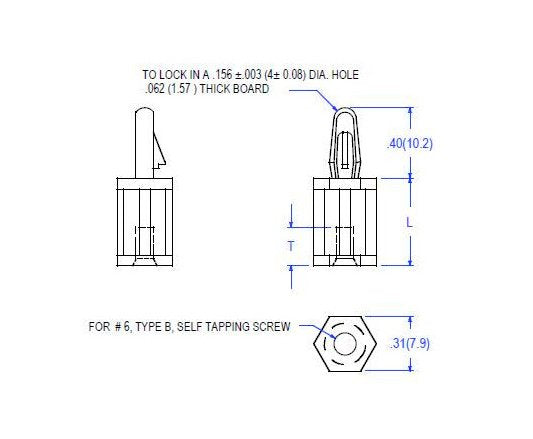

The 10A Series Nylon .156 Board Hole x #6 Self Tapping Screw is designed for easy manual installation on chassis with a self-tapping feature, making it ideal for applications with limited space. The PC board mount end is releasable with a bayonet nose design. Compliant with UL94V-2 material (UL94V-0 available), ASTM D 4066, PA111, and RoHS standards, this screw offers a temperature range of -40 to 185F. With precise dimensions and a durable build, it ensures secure mounting and longevity.

Product Specifications

Specifications Board Hole Diameter
.156 (4) +/-.003 inches (mm)
Specifications Chassis Thickness
.062 (1.57) inches (mm)
Specifications Dim L
1.00 (25.4) inches (mm)
Specifications Dim T
.31 (8) inches (mm)
