10A Series Nylon Circuit Board Support Screw

Name: 10A Series Nylon Circuit Board Support Screw
Brand: All Electronics Hardware
SKU: 01C-ce64ae
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-ce64ae

10A Series Nylon Circuit Board Support Screw - Easy installation, minimal protrusion, and durable Nylon 66 construction. ASTM and RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 10A Series Nylon Circuit Board Support Screw is designed for quick and easy installation with a self-tapping feature, making it perfect for applications with limited space. Its bayonet nose allows for releasable mounting, ensuring convenient adjustments. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available upon request), this screw is compliant with ASTM D 4066, PA111, and RoHS standards. With a temperature range of -40 to 185F (-40 to 85C), it offers durability and reliability for diverse environments.

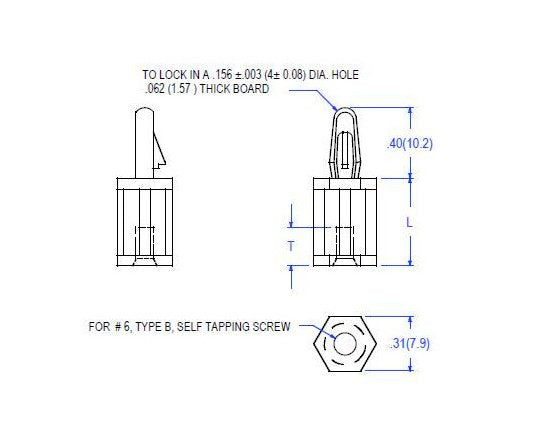

Product Specifications

Specifications Board Hole Diameter

.156 (4) +/-.003 inches (mm)

Specifications Chassis Thickness

.062 (1.57) inches (mm)

Specifications Dim L

1.40 (35.7) inches (mm)

Specifications Dim T

.31 (8) inches (mm)
