10A Series Nylon Circuit Board Support Self Tapping Screw

Name: 10A Series Nylon Circuit Board Support Self Tapping Screw
Brand: All Electronics Hardware
SKU: 01C-eef053
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-eef053

Install with ease - 10A Series Self Tapping Screw for limited space applications. Nylon 66 UL94V-2 material. RoHS compliant. Temp Range: -40 to 185F

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 10A Series Self Tapping Screw is designed for easy manual installation on chassis, perfect for space-constrained applications. With minimal protrusion and releasable PC board mount end, it offers flexibility and convenience. Made of Nylon 66 UL94V-2 material (UL94V-0 available), this screw meets ASTM D 4066, PA111 standards and is RoHS compliant. With a temperature range of -40 to 185F (-40 to 85C), this screw ensures reliable performance in various environments.

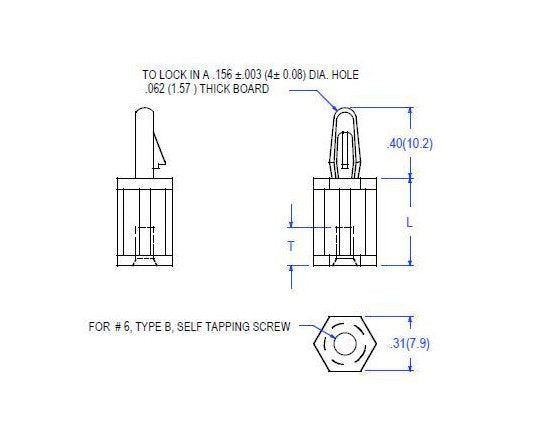

Product Specifications

Specifications Board Hole Diameter

.156 (4) +/-.003 inches (mm)

Specifications Chassis Thickness

.062 (1.57) inches (mm)

Specifications Dim L

.500 (12.7) inches (mm)

Specifications Dim T

.31 (8) inches (mm)

10A Series Nylon Circuit Board Support Self Tapping Screw
