10A Series Nylon Circuit Board Supports Self Tapping Screw

Name: 10A Series Nylon Circuit Board Supports Self Tapping Screw
Brand: All Electronics Hardware
SKU: 01C-cfba9c
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-cfba9c

10A Series Self-Tapping Screw - Easy to install, minimal protrusion, temperature-resistant, meets ASTM and RoHS standards.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 10A Series Self-Tapping Screw is designed for easy manual installation on chassis. With minimal protrusion, it is perfect for confined spaces. Featuring a releasable PC board mount end and made of Nylon 66 UL94V-2 material, this screw meets stringent ASTM and RoHS standards. Temperature resistant from -40 to 185F (-40 to 85C), it is a reliable choice for various applications.

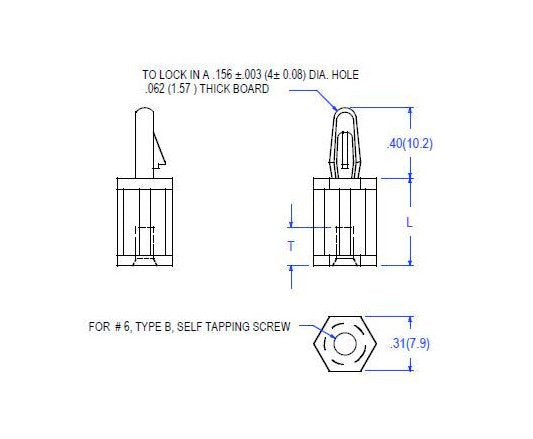

Product Specifications

Specifications Board Hole Diameter

.156 (4) +/-.003 inches (mm)

Specifications Chassis Thickness

.062 (1.57) inches (mm)

Specifications Dim L

.750 (19.1) inches (mm)

Specifications Dim T

.31 (8) inches (mm)

10A Series Nylon Circuit Board Supports Self Tapping Screw
