10A Series Nylon Self Tapping Screw with .156 Board Hole x #6

Name: 10A Series Nylon Self Tapping Screw with .156 Board Hole x #6
Brand: All Electronics Hardware
SKU: 01C-e321ba
Price: 12.99 USD
Availability: OutOfStock

SKU:01C-e321ba

Versatile 10A Series Nylon Self Tapping Screw for easy installation with minimal protrusion. Ideal for space-restricted applications.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 10A Series Nylon Self Tapping Screw is designed for easy manual installation on chassis, ideal for space-constrained applications. Featuring a minimal protrusion and a releasable PC board mount end with a Bayonet Nose, this screw offers convenience and versatility. Made of Nylon 66 UL94V-2 material, this screw is RoHS compliant, with a temperature range of -40 to 185F (-40 to 85C), meeting industry standards ASTM D 4066, PA111. Available with UL94V-0 variant upon request to accommodate specific requirements.

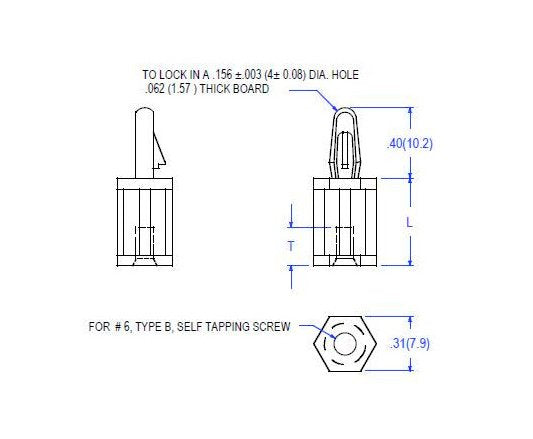

Product Specifications

Specifications Board Hole Diameter

.156 (4) +/-.003 inches (mm)

Specifications Chassis Thickness

.062 (1.57) inches (mm)

Specifications Dim L

.375 (9.5) inches (mm)

Specifications Dim T

.31 (8) inches (mm)

10A Series Nylon Self Tapping Screw with .156 Board Hole x #6
