10A Series Self-Tapping Screw for Circuit Board Supports

Name: 10A Series Self-Tapping Screw for Circuit Board Supports
Brand: All Electronics Hardware
SKU: 01C-cafdb3
Price: 9.99 USD
Availability: OutOfStock

SKU:01C-cafdb3

Secure and easy-to-install self-tapping screw for circuit board supports in limited spaces. Nylon 66 UL94V-2 material with UL File No. E41938 and RoHS compliance.

$9.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

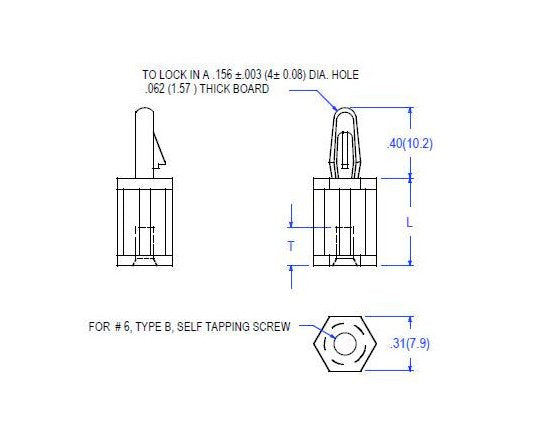

The 10A Series Self-Tapping Screw is designed for easy hand installation in chassis, making it perfect for applications with limited space. Featuring minimal protrusion and a releasable PC board mount end, this screw ensures secure fastening. Made of Nylon 66 UL94V-2 material, with UL File No. E41938 and RoHS compliance, it offers temperature resistance from -40 to 185F. With a board hole diameter of .156 inches and dimensions conforming to ASTM D 4066, PA111 standards, this screw guarantees reliable performance in circuit board support applications.

Product Specifications

Specifications Board Hole Diameter

.156 (4) +/-.003 inches (mm)

Specifications Chassis Thickness

.062 (1.57) inches (mm)

Specifications Dim L

.625 (15.9) inches (mm)

Specifications Dim T

.31 (8) inches (mm)
