10A Series Self-Tapping Screw for Circuit Board Supports

Name: 10A Series Self-Tapping Screw for Circuit Board Supports
Brand: All Electronics Hardware
SKU: 01C-1916bb
Price: 29.99 USD
Availability: OutOfStock

SKU:01C-1916bb

Secure circuit board supports effortlessly with the 10A Series self-tapping screw. Ideal for limited space applications, RoHS compliant.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The 10A Series Self-Tapping Screw is a versatile solution for securing circuit board supports with ease. Featuring a board hole diameter of .156 inches, this screw offers a secure fit with minimal protrusion, making it perfect for applications with limited space. Constructed from Nylon 66 UL94V-2 material (UL94V-0 available), it meets ASTM D 4066, PA111 standards and is RoHS compliant. With a temperature range of -40 to 185F, this screw is designed for durability and reliability in various environments.

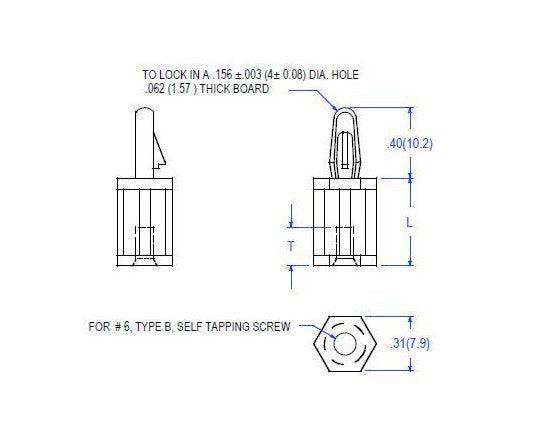

Product Specifications

Specifications Board Hole Diameter

.156 (4) +/-.003 inches (mm)

Specifications Chassis Thickness

.062 (1.57) inches (mm)

Specifications Dim L

.875 (22.2) inches (mm)

Specifications Dim T

.31 (8) inches (mm)
